Moulded Case Circuit Breaker 1600A | 70kA Breaking Capacity | IP4X Protection by Hager
Moulded case circuit breaker with 1600A rated current and 70kA breaking capacity—ideal for industrial and commercial power distribution. Built for enhanced safety with fast tripping response and IP4X protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

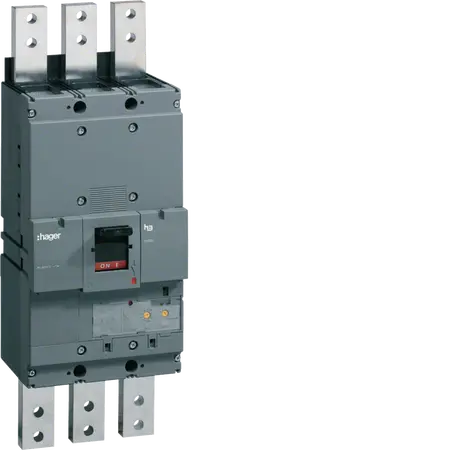

Product Name/Title: Moulded Case Circuit Breaker h1600 3P 70kA 1600A LSI
Brand: Hager
SKU: HEF990H
Alternatively Known As: MCCB, Moulded Case Circuit Breaker, H1600 Circuit Breaker
Technical Specifications
- Rated ultimate short-circuit breaking capacity Icu under 230 V AC: 100 kA
- Rated ultimate short-circuit breaking capacity Icu under 240 V AC: 100 kA
- Rated ultimate short-circuit breaking capacity Icu under 400 V AC: 70 kA
- Rated ultimate short-circuit breaking capacity Icu under 415 V AC: 70 kA
- Number of poles: 3
- Frequency: 50 - 60 Hz
- Rated insulation voltage Ui: 800 V
- Rated operational voltage Ue: 220 - 690 V
- Magnetic protection trip time: 100 - 200 ms
- Total power loss under IN: 168.90 W
- Electric endurance in number of cycles: 1000
- Operating temperature: -25 - 70 °C
- Dimensions (H x L x W): 200mm x 150mm x 300mm
- Weight: 10 kg
Key Features
- Rated current of 1600 A with a breaking capacity of 70 kA at 415 V AC.
- Fast tripping response time of 10 ms for enhanced safety.
- IP4X ingress protection for reliable performance in various environments.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in large buildings
- General: Protection of electrical circuits from overloads and short circuits
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Designed to improve environmental performance by reducing carbon footprint.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Moulded Case Circuit Breaker H1600 3P 70kA 1600A LSI is available now for immediate purchase. Ideal for industrial and commercial power distribution systems.
