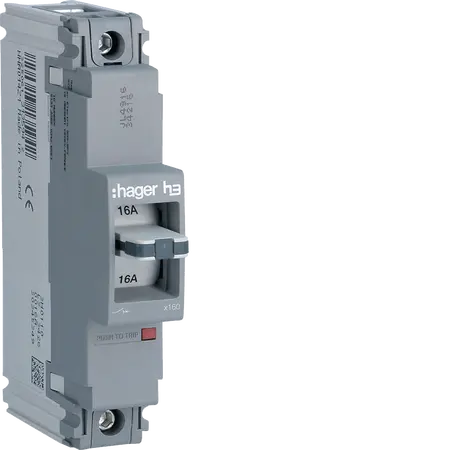

Moulded Case Circuit Breaker h3 x160 TM FIX 1P1D 16A 25kA CTC

Moulded Case Circuit Breaker 16A | 25kA Breaking Capacity | IP4X Safety by Hager

BRAND: :hager

SKU: HHA014Z

$198.60 List price: $253.90

+ −

30 Days Return Delivery Options

Moulded case circuit breaker with 16A rated current and 25kA breaking capacity—ideal for industrial and residential power distribution. Built for enhanced safety with IP4X protection and fast tripping response.

Description
Attachments

Product Name/Title: Moulded Case Circuit Breaker h3 x160 TM FIX 1P1D 16A 25kA CTC

Brand: Hager

SKU: HHA014Z

Alternatively Known As: MCCB, Moulded Case Circuit Breaker, Circuit Breaker 16A

Technical Specifications

Rated ultimate short-circuit breaking capacity Icu: 25 kA
Rated service breaking capacity Ics: 20 kA
Frequency: 50 - 60 Hz
Rated insulation voltage Ui: 690 V
Total power loss under IN: 1.80 W
Electric endurance: 1000 cycles
Mechanical operations: 4000 cycles
Connection type: Screw terminal
Cable material: Copper
Dimensions (H x L x W): 130mm x 68mm x 25mm
Weight: 1.0 kg

Key Features

Rated current of 16A with a breaking capacity of 25kA.
Fast tripping response time of 10 ms.
IP4X ingress protection for enhanced safety.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution and protection in commercial and industrial settings
Residential: Electrical safety in home installations

Standards & Compliance

Complies with AS/NZS 60947 for safety and performance standards.

Environmental Benefits

RoHS and REACH compliant, contributing to reduced environmental impact.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Moulded Case Circuit Breaker h3 x160 TM FIX 1P1D 16A 25kA CTC is available now for immediate purchase. Ideal for industrial and residential electrical safety applications.

HHA014Z (HHA014Z, 121 Kb) [Download]

reach_declaration_HHA014Z11.pdf (reach_declaration_HHA014Z11.pdf, 103 Kb) [Download]

rohs_declaration_HHA014Z11.pdf (rohs_declaration_HHA014Z11.pdf, 104 Kb) [Download]

(ID1_X160_H3_6LE001633AB_CO_WEB.pdf, 8,716 Kb) [Download]

DECLARATION_25_1426_03_25.pdf (DECLARATION_25_1426_03_25.pdf, 431 Kb) [Download]

DECLARATION_25_3174_03_25.pdf (DECLARATION_25_3174_03_25.pdf, 435 Kb) [Download]
