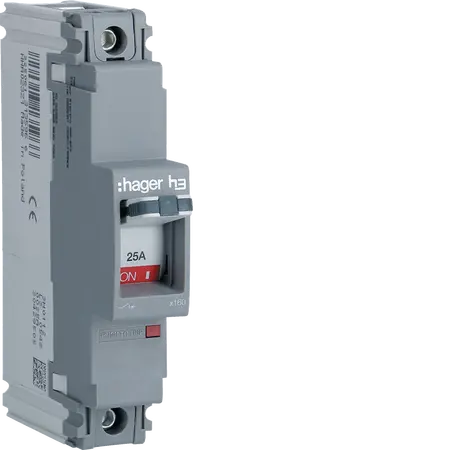

Moulded Case Circuit Breaker 25A | 25kA Breaking Capacity | IP4X Safety by Hager

BRAND: :hager
SKU: HHA023Z
$193.70 List price: $247.70
+
Moulded case circuit breaker with 25A rated current and 25kA breaking capacity—ideal for residential and commercial safety. Built for fast tripping with 10 ms response time and IP4X protection.

Product Name/Title: Moulded Case Circuit Breaker X160 1P 25kA 25A

Brand: Hager

SKU: HHA023Z

Alternatively Known As: MCCB, Moulded Case Circuit Breaker, Circuit Breaker 25A

Technical Specifications
  • Rated current: 25 A
  • Rated ultimate short-circuit breaking capacity: 25 kA
  • Rated service breaking capacity: 20 kA
  • Number of poles: 1
  • Response time when opening: 10 ms
  • Frequency: 50 - 60 Hz
  • Rated impulse withstand voltage: 8000 V
  • Rated insulation voltage: 690 V
  • Total power loss under IN: 4.30 W
  • Electric endurance: 1000 cycles
  • Mechanical operations: 4000
  • Ingress Protection (IP) class: IP4X
  • Connection: Screw terminal for flexible conductor 4 - 70 mm², rigid conductor 4 - 95 mm²
  • Nominal tightening torque: 6 - 6 Nm
  • Dimensions (H x L x W): 80mm x 120mm x 100mm
  • Weight: 1.5 kg
Key Features
  • Rated current of 25A with a breaking capacity of 25kA.
  • Fast tripping response time of 10 ms.
  • IP4X ingress protection for enhanced safety.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and small buildings
  • Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
  • Complies with AS/NZS 60947 for safety and performance standards.
Environmental Benefits
  • Designed for energy efficiency, reducing electrical waste and enhancing safety.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Moulded Case Circuit Breaker X160 1P 25kA 25A is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.

HHA023Z (HHA023Z, 118 Kb) [Download]

ID1_X160_6H5523E_WEB.pdf (ID1_X160_6H5523E_WEB.pdf, 12,290 Kb) [Download]

(DECLARATION_25_1426_03_25.pdf, 431 Kb) [Download]

(DECLARATION_25_3174_03_25.pdf, 435 Kb) [Download]
