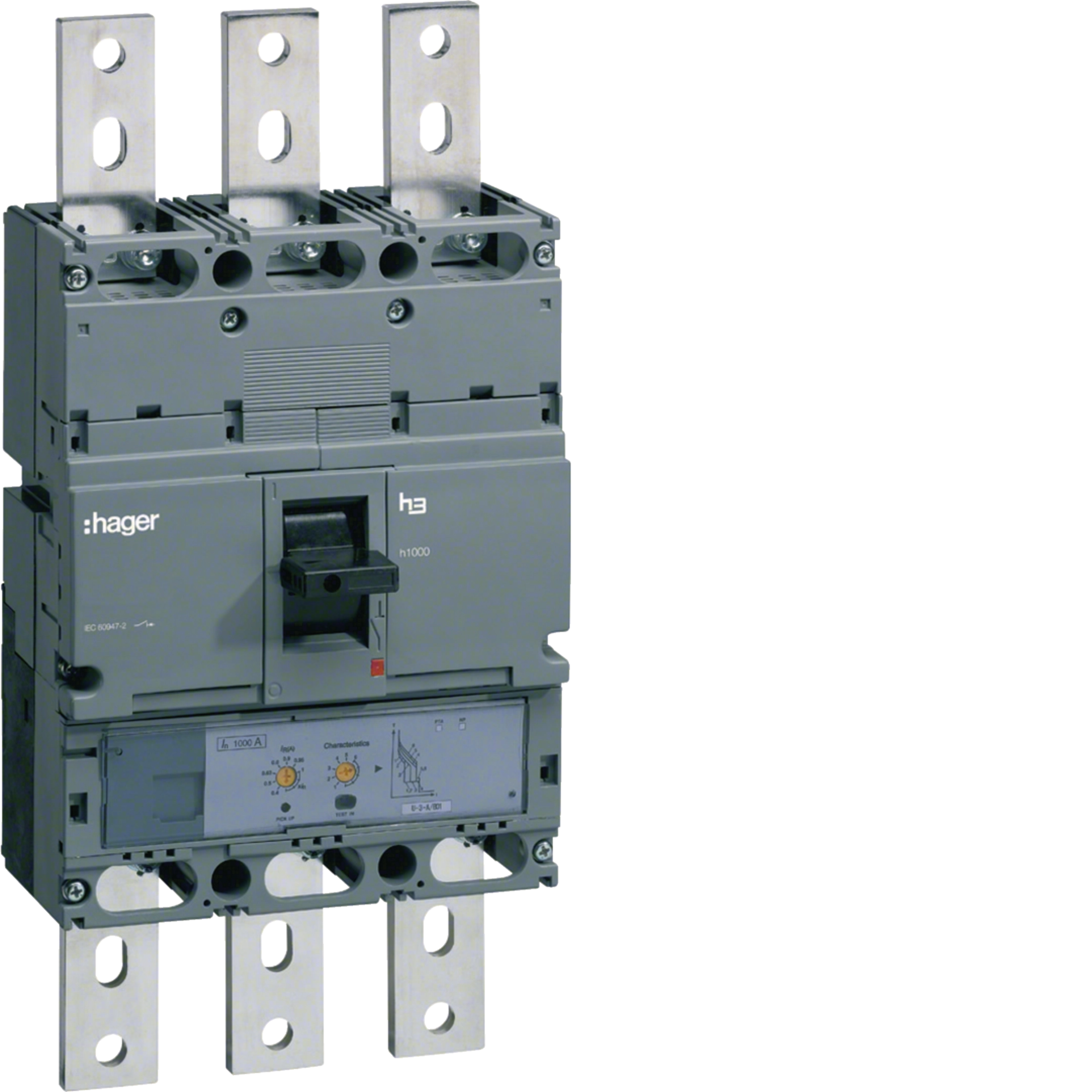

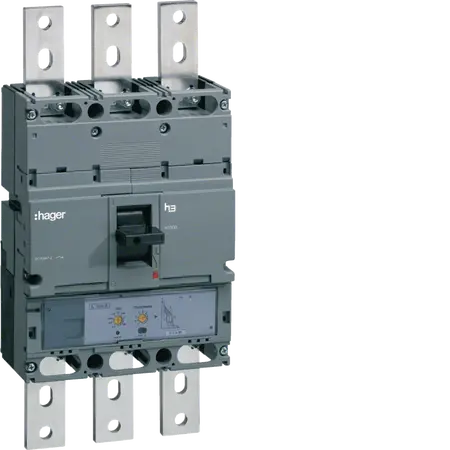

Moulded Case Circuit Breaker h1000 3P 70kA 1000A LSI

Moulded Case Circuit Breaker 3P 70kA 1000A | Fast Tripping | Fixed Type by Hager

BRAND: :hager

SKU: HEE970H

$9,932.00 List price: $12,376.70

+ −

30 Days Return Delivery Options

Moulded case circuit breaker with 70kA breaking capacity and 1000A rated current—ideal for industrial and commercial power distribution. Built for enhanced safety with fast tripping response and fixed construction.

Description
Attachments

Product Name/Title: Moulded Case Circuit Breaker h1000 3P 70kA 1000A LSI

Brand: Hager

SKU: HEE970H

Alternatively Known As: MCCB, Moulded Case Circuit Breaker, H1000 Circuit Breaker

Technical Specifications

Rated ultimate short-circuit breaking capacity Icu under 230V AC: 100kA
Rated ultimate short-circuit breaking capacity Icu under 240V AC: 100kA
Rated ultimate short-circuit breaking capacity Icu under 400V AC: 70kA
Rated ultimate short-circuit breaking capacity Icu under 415V AC: 70kA
Number of poles: 3
Frequency: 50 - 60 Hz
Rated insulation voltage Ui: 800V
Rated operational voltage Ue: 220 - 690V
Ingress Protection (IP) class: IP4X
Operating temperature: -25 - 70 °C
Dimensions (H x L x W): 200mm x 150mm x 300mm
Weight: 10 kg

Key Features

Rated current of 1000A with a breaking capacity of 70kA at 415V AC.
Fast tripping response time of 10 ms for enhanced safety.
Fixed built-in construction type for reliable performance.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical systems in large buildings
General: Protection of electrical circuits from overloads and short circuits

Environmental Benefits

Designed to reduce carbon footprint and improve environmental performance.

Warranty Information

3 years warranty against manufacturing defects.

Available Now

The Hager Moulded Case Circuit Breaker H1000 3P 70kA 1000A LSI is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

Data Sheet (HEE970H, 154 Kb) [Download]

Certificate (reach_declaration_HEE970H1.pdf, 103 Kb) [Download]

Certificate (rohs_declaration_HEE970H1.pdf, 104 Kb) [Download]

Data Sheet (HEE970H.webp, 343 Kb) [Download]

Certificate (ID1_H1000_6H5560F_WEB.pdf, 8,079 Kb) [Download]

Certificate (DECLARATION_22_3189_06_22.pdf, 285 Kb) [Download]
