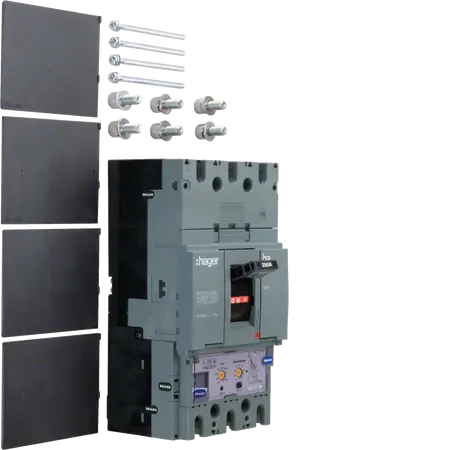

Moulded Case Circuit Breaker 400A | 50kA | 3P LSI | IP4X by Hager
Moulded case circuit breaker with 400A rated current and 50kA breaking capacity—ideal for industrial and commercial power distribution. Built for enhanced safety with fast tripping and IP4X protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Moulded Case Circuit Breaker h630 3P 50kA 400A LSI
Brand: Hager
SKU: HND400H
Alternatively Known As: MCCB, Moulded Case Circuit Breaker, Circuit Breaker 400A
Technical Specifications
- Rated ultimate short-circuit breaking capacity Icu under 400 V AC: 50 kA
- Rated insulation voltage Ui: 800 V
- Rated operational voltage Ue: 220 - 690 V
- Frequency: 50 - 60 Hz
- Operating temperature: -25 - 70 °C
- Number of poles: 3
- Total power loss under IN: 62.40 W
- Electric endurance in number of cycles: 1000
- Dimensions (H x L x W): 300mm x 150mm x 200mm
- Weight: 10 kg
Key Features
- Rated current of 400 A with a breaking capacity of 50 kA under 400 V AC.
- Fast tripping response time of 10 ms for enhanced safety.
- IP4X ingress protection for reliable performance in various environments.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- General: Protection of electrical circuits from overloads and short circuits
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Moulded Case Circuit Breaker H630 3P 50kA 400A LSI is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
