Moulded Case Circuit Breaker 40A | 25kA Breaking Capacity | IP4X Safety by Hager
Moulded case circuit breaker with 40A rated current and 25kA breaking capacity—ideal for industrial and residential power distribution. Built for enhanced safety with IP4X protection and compliance with AS/NZS 60947 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

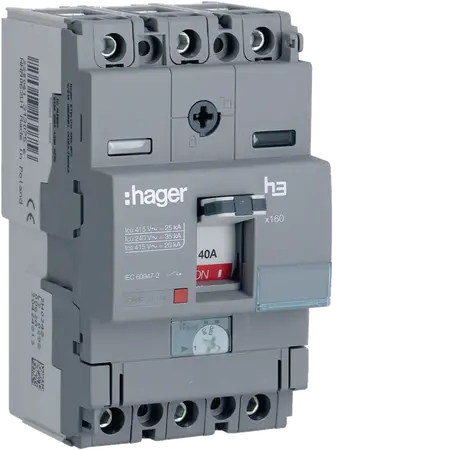

Product Name/Title: Moulded Case Circuit Breaker h3 x160 TM ADJ 3P3D 40A 25kA CTC
Brand: Hager
SKU: HHA040U
Alternatively Known As: MCCB, Moulded Case Circuit Breaker, Circuit Breaker 40A
Technical Specifications
- Rated ultimate short-circuit breaking capacity Icu under 400 V AC: 25 kA
- Rated service breaking capacity Ics under 400 V AC: 20 kA
- Number of poles: 3
- Frequency: 50 - 60 Hz
- Rated insulation voltage Ui: 690 V
- Rated operational voltage Ue: 220 - 415 V
- Total power loss under IN: 11 W
- Electric endurance in number of cycles: 1000
- Mechanical operations: 4000
- Connection type: Screw terminal
- Flexible conductor cross-section: 4 - 70 mm²
- Rigid conductor cross-section: 4 - 95 mm²
- Dimensions (H x L x W): 130mm x 68mm x 75mm
- Weight: 1.5 kg
Key Features
- Rated current of 40A with a breaking capacity of 25kA at 400V AC.
- IP4X ingress protection for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in commercial and industrial settings
- Residential: Protection for home electrical systems
Standards & Compliance
- Complies with AS/NZS 60947 for safety and performance standards.
Environmental Benefits
- RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Moulded Case Circuit Breaker h3 x160 TM ADJ 3P3D 40A 25kA CTC is available now for immediate purchase. Ideal for industrial and residential electrical protection.
