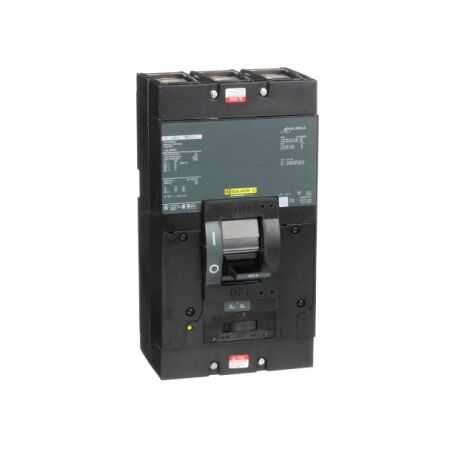

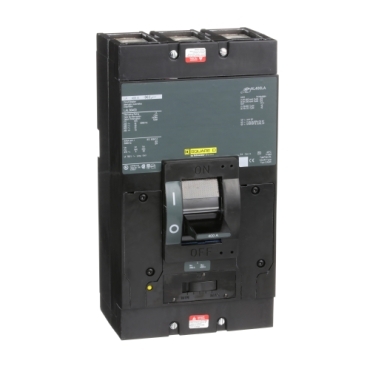

Moulded Case Circuit Breaker 600V 400A | 3 Pole | 22kA Interrupting Capacity | Thermal Magnetic Trip | @Pack of 1 | by Clipsal
The Moulded Case Circuit Breaker 600V 400A is designed for reliable circuit protection in commercial and industrial electrical distribution systems. With a robust 22kA interrupting capacity and thermal magnetic trip unit, it ensures safety against overloads and short circuits. Ideal for main and sub-main circuit protection, this breaker features lug terminals for secure connections and is built to withstand demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Moulded Case Circuit Breaker 600V 400A | 3 Pole | 22kA Interrupting Capacity | Thermal Magnetic Trip | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLAL36400
Alternatively Known As: 400A MCCB, 600V Circuit Breaker, Clipsal LA36400, 3 Pole MCCB, Thermal Magnetic Breaker
Technical Specifications
- Rated Current: 400A
- Number of Poles: 3
- Rated Voltage: 600VAC
- Interrupting Capacity: 22kA at 600VAC
- DC Rating: 250VDC, 10kA
- Trip Unit: Thermal magnetic
- Terminals: Lugs
- Mounting: Panel mount
- Dimensions (H x L x W): 260mm x 110mm x 140mm
- Weight: 6.5 kg
Key Features
- Moulded case circuit breaker for reliable circuit protection
- Rated for 400A, 3 pole, 600VAC, 22kA interrupting capacity
- Also rated for 250VDC, 10kA
- Thermal magnetic trip unit for overload and short-circuit protection
- Lug terminals for secure connections
- Robust construction for demanding environments
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution systems
- Main and sub-main circuit protection
- Switchboards and panelboards
- Motor control centers
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and equipment damage
- Long operational life reduces replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal SCHLAL36400 Moulded Case Circuit Breaker 600V 400A is available for immediate purchase. Ideal for commercial and industrial electrical distribution systems.
