Moulded Case Circuit Breaker h630 4P 50kA 630A LSI

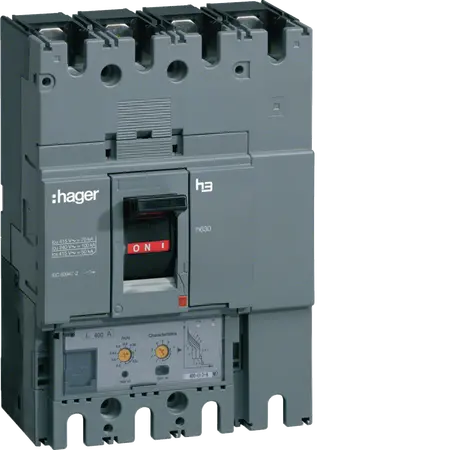

Moulded Case Circuit Breaker 630A | 4P 50kA | Fast Tripping | IP4X by Hager

BRAND: :hager

SKU: HND631H

$4,233.80 List price: $5,413.70

+ −

30 Days Return Delivery Options

Moulded case circuit breaker with 630A rated current and 50kA breaking capacity—ideal for industrial and commercial power distribution. Built for comprehensive circuit protection, with fast tripping response and IP4X rating.

Description
Attachments

Product Name/Title: Moulded Case Circuit Breaker h630 4P 50kA 630A LSI

Brand: Hager

SKU: HND631H

Alternatively Known As: MCCB, Moulded Case Circuit Breaker, Circuit Breaker 630A

Technical Specifications

Rated ultimate short-circuit breaking capacity Icu under 230 V AC: 85 kA
Rated ultimate short-circuit breaking capacity Icu under 240 V AC: 85 kA
Rated ultimate short-circuit breaking capacity Icu under 400 V AC: 50 kA
Rated ultimate short-circuit breaking capacity Icu under 415 V AC: 50 kA
Frequency: 50 - 60 Hz
Rated insulation voltage Ui: 800 V
Rated operational voltage Ue: 220 - 690 V
Ingress Protection (IP) class: IP4X
Operating temperature: -25 - 70 °C
Dimensions (H x L x W): 300mm x 150mm x 200mm
Weight: 10 kg

Key Features

Rated current of 630 A with a breaking capacity of 50 kA.
Four poles for comprehensive circuit protection.
Fast tripping response time of 10 ms.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical systems in commercial buildings
General: Protection of electrical circuits from overloads and short circuits

Standards & Compliance

Complies with AS/NZS 3000 for electrical installation safety.

Environmental Benefits

Designed to improve environmental performance by reducing carbon footprint.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Moulded Case Circuit Breaker H630 4P 50kA 630A LSI is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

HND631H (HND631H, 178 Kb) [Download]

reach_declaration_HND631H1.pdf (reach_declaration_HND631H1.pdf, 103 Kb) [Download]

rohs_declaration_HND631H1.pdf (rohs_declaration_HND631H1.pdf, 104 Kb) [Download]

(ID1_H630_6H5530F_WEB.pdf, 7,297 Kb) [Download]

(DECLARATION_22_3251_06_22.pdf, 196 Kb) [Download]

(DECLARATION_22_1872_06_22.pdf, 300 Kb) [Download]
