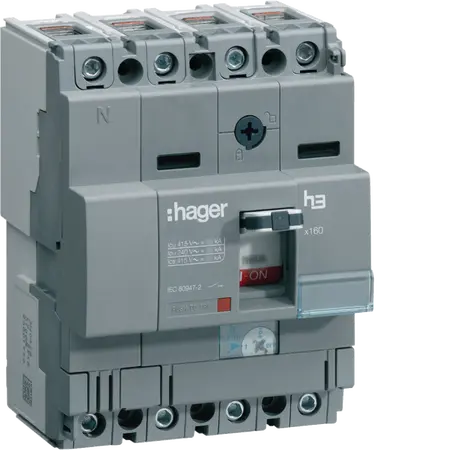

Moulded Case Circuit Breaker 63A | 4P 40kA | IP4X Protection by Hager
Moulded case circuit breaker with 63A rated current and 40kA short-circuit capacity—ideal for industrial, commercial, and residential applications. Built for enhanced safety with IP4X protection and versatile four-pole design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Moulded Case Circuit Breaker x160 4P 40kA 63A
Brand: Hager
SKU: HNA064U
Alternatively Known As: MCCB, Moulded Case Circuit Breaker, Circuit Breaker 63A
Technical Specifications
- Rated current: 63 A
- Short-circuit breaking capacity Icu under 400 V AC: 40 kA
- Short-circuit breaking capacity Icu under 240 V AC: 85 kA
- Number of poles: 4
- Frequency: 50 - 60 Hz
- Rated insulation voltage Ui: 690 V
- Rated operational voltage Ue: 220 - 415 V
- Total power loss under IN: 30 W
- Electric endurance: 1000 cycles
- Mechanical operations: 4000
- Ingress Protection (IP) class: IP4X
- Connection: Screw terminal for flexible conductor 4 - 70 mm², rigid conductor 4 - 95 mm²
- Nominal tightening torque: 6 - 6 Nm
- Dimensions (H x L x W): 200mm x 150mm x 100mm
- Weight: 2.5 kg
Key Features
- Rated current of 63A with a short-circuit breaking capacity of 40kA.
- Four poles for versatile applications.
- IP4X ingress protection for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical protection in office buildings
- Residential: Main electrical supply protection in homes
Standards & Compliance
- Complies with AS/NZS 60947-2 for safety and performance standards.
Environmental Benefits
- Designed for energy efficiency, reducing electrical waste and enhancing safety.
Warranty Information
3 years warranty against manufacturing defects.
Available Now
The Moulded Case Circuit Breaker x160 4P 40kA 63A is available now for immediate purchase. Ideal for industrial, commercial, and residential electrical protection.
