Moulded Case Circuit Breaker 800A | 50kA Breaking Capacity | IP4X Protection by Hager
Moulded case circuit breaker with 800A rated current and 50kA breaking capacity—ideal for industrial and commercial power distribution. Built for enhanced safety with fast tripping response and IP4X protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

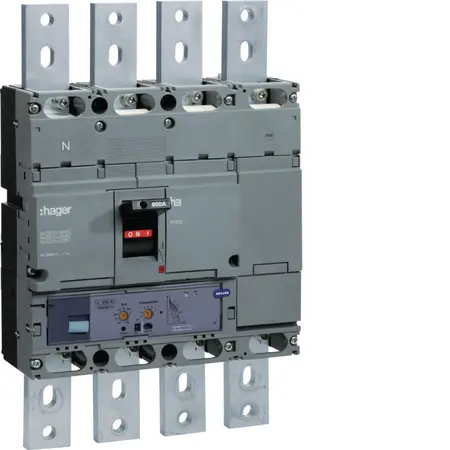

Product Name/Title: Moulded Case Circuit Breaker h1000 4P 50kA 800A LSI
Brand: Hager
SKU: HNE801H
Alternatively Known As: MCCB, Moulded Case Circuit Breaker, H1000 Circuit Breaker
Technical Specifications
- Rated ultimate short-circuit breaking capacity Icu under 230 V AC: 85 kA
- Rated ultimate short-circuit breaking capacity Icu under 240 V AC: 85 kA
- Rated ultimate short-circuit breaking capacity Icu under 400 V AC: 50 kA
- Rated ultimate short-circuit breaking capacity Icu under 415 V AC: 50 kA
- Number of poles: 4
- Frequency: 50 - 60 Hz
- Rated insulation voltage: 800 V
- Rated operational voltage: 220 - 690 V
- Magnetic protection trip time: 100 - 200 ms
- Total power loss under IN: 153.60 W
- Electric endurance in number of cycles: 1000
- Operating temperature: -25 - 70 °C
- Dimensions (H x L x W): 300mm x 150mm x 200mm
- Weight: 10 kg
Key Features
- Rated current of 800A with a breaking capacity of 50kA under 400V AC.
- Fast tripping response time of 10 ms for enhanced safety.
- IP4X ingress protection for reliable performance in various environments.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for optimal safety and compliance.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- General: Protection of electrical circuits from overloads and short circuits
Standards & Compliance
- Complies with AS/NZS 60947 for safety and performance standards.
Environmental Benefits
- Designed to reduce carbon footprint and improve environmental performance.
Warranty Information
3 years warranty against manufacturing defects.
Available Now
The Hager Moulded Case Circuit Breaker H1000 4P 50kA 800A LSI is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
