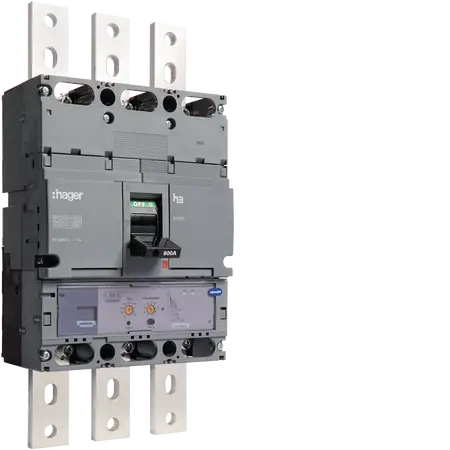

Moulded Case Circuit Breaker 800A | 70kA Breaking Capacity | 3P LSI by Hager

BRAND: :hager
SKU: HEE800H
$4,993.50 List price: $6,385.10
+ −
30 Days Return Delivery Options
Moulded case circuit breaker with 800A rated current and 70kA breaking capacity—ideal for industrial and commercial power distribution. Built for enhanced safety with fast tripping response and fixed construction.

Product Name/Title: Moulded Case Circuit Breaker h1000 3P 70kA 800A LSI

Brand: Hager

SKU: HEE800H

Alternatively Known As: MCCB, Moulded Case Circuit Breaker, HEE800H

Technical Specifications
  • Rated ultimate short-circuit breaking capacity Icu under 230 V AC: 100 kA
  • Rated ultimate short-circuit breaking capacity Icu under 240 V AC: 100 kA
  • Rated ultimate short-circuit breaking capacity Icu under 400 V AC: 70 kA
  • Rated ultimate short-circuit breaking capacity Icu under 415 V AC: 70 kA
  • Number of poles: 3
  • Frequency: 50 - 60 Hz
  • Rated insulation voltage: 800 V
  • Rated operational voltage: 220 - 690 V
  • Ingress Protection (IP) class: IP4X
  • Operating temperature: -25 - 70 °C
  • Dimensions (H x L x W): 300mm x 150mm x 200mm
  • Weight: 10 kg
Key Features
  • Rated current of 800 A with a breaking capacity of 70 kA under 415 V AC.
  • Fast tripping response time of 10 ms for enhanced safety.
  • Fixed built-in construction type for reliable performance.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in manufacturing facilities
  • Commercial: Electrical systems in large buildings
  • General: Protection of electrical circuits from overloads and short circuits
Standards & Compliance
  • Complies with AS/NZS 60947 for safety and performance standards.
Environmental Benefits
  • Designed to improve environmental performance by reducing carbon footprint.
Warranty Information

3 years warranty against manufacturing defects.

Available Now

The Moulded Case Circuit Breaker H1000 3P 70kA 800A LSI is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

HEE800H (HEE800H, 148 Kb) [Download]

reach_declaration_HEE800H1.pdf (reach_declaration_HEE800H1.pdf, 103 Kb) [Download]

rohs_declaration_HEE800H1.pdf (rohs_declaration_HEE800H1.pdf, 104 Kb) [Download]

(ID1_H1000_6H5560F_WEB.pdf, 8,079 Kb) [Download]

DECLARATION_22_3185_06_22.pdf (DECLARATION_22_3185_06_22.pdf, 312 Kb) [Download]
