Moulded Case Circuit Breaker 800A | 70kA Breaking Capacity | 4P LSI | IP4X by Hager
Moulded case circuit breaker with 800A rated current and 70kA breaking capacity—ideal for industrial and commercial power distribution. Built for enhanced safety with fast tripping response and IP4X protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

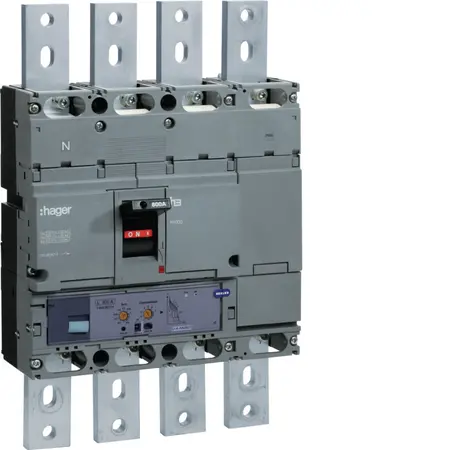

Product Name/Title: Moulded Case Circuit Breaker h1000 4P 70kA 800A LSI
Brand: Hager
SKU: HEE801H
Alternatively Known As: MCCB, Moulded Case Circuit Breaker, H1000 Circuit Breaker
Technical Specifications
- Rated ultimate short-circuit breaking capacity Icu under 230 V AC: 100 kA
- Rated ultimate short-circuit breaking capacity Icu under 240 V AC: 100 kA
- Rated ultimate short-circuit breaking capacity Icu under 400 V AC: 70 kA
- Rated ultimate short-circuit breaking capacity Icu under 415 V AC: 70 kA
- Number of poles: 4
- Frequency: 50 - 60 Hz
- Rated insulation voltage Ui: 800 V
- Rated operational voltage Ue: 220 - 690 V
- Magnetic protection trip time: 100 - 200 ms
- Total power loss under IN: 153.60 W
- Electric endurance in number of cycles: 1000
- Operating temperature: -25 - 70 °C
- Dimensions (H x L x W): 300mm x 150mm x 200mm
- Weight: 10 kg
Key Features
- Rated current of 800 A with a breaking capacity of 70 kA under 415 V AC.
- Fast tripping response time of 10 ms for enhanced safety.
- IP4X ingress protection for reliable performance in various environments.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in office buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS 60947-2 for safety and performance standards.
Environmental Benefits
- Designed to reduce carbon footprint and improve environmental performance.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Moulded Case Circuit Breaker H1000 4P 70kA 800A LSI is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
