Moulded Case Circuit Breaker 80A | 25kA Breaking Capacity | IP4X Safety by Hager
Moulded case circuit breaker with 80A rated current and 25kA breaking capacity—ideal for industrial and residential power distribution. Built for safety with IP4X protection and fast tripping response.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

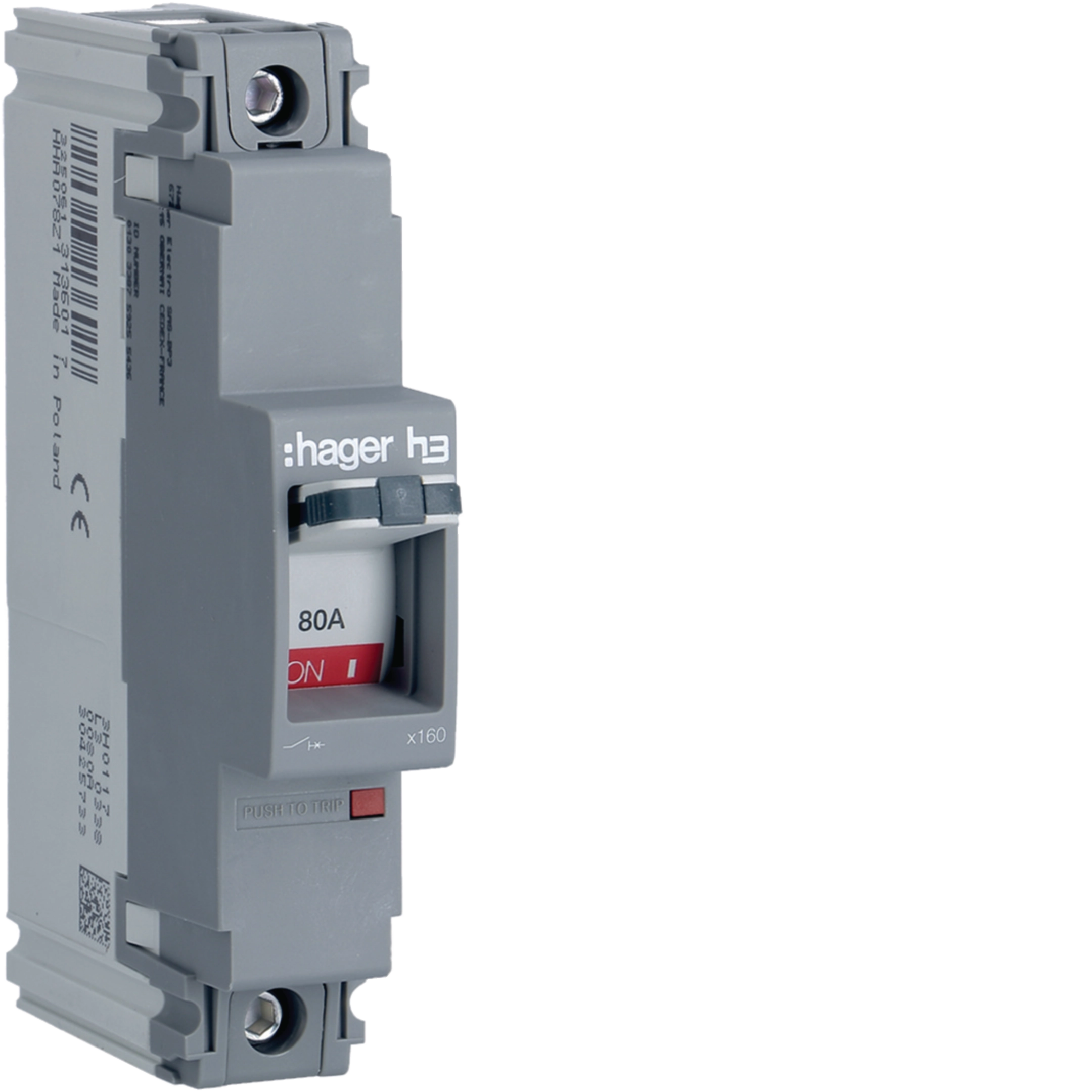

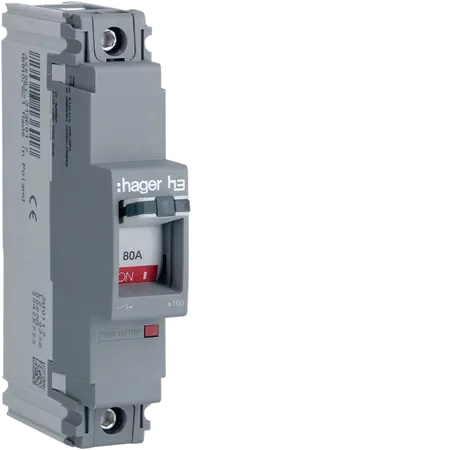

Product Name/Title: Moulded Case Circuit Breaker h3 x160 TM FIX 1P1D 80A 25kA CTC
Brand: Hager
SKU: HHA078Z
Alternatively Known As: MCCB, Moulded Case Circuit Breaker, Circuit Breaker 80A
Technical Specifications
- Rated current: 80 A
- Rated ultimate short-circuit breaking capacity: 25 kA
- Rated service breaking capacity: 20 kA
- Frequency: 50 - 60 Hz
- Rated insulation voltage: 690 V
- Total power loss under IN: 4.80 W
- Electric endurance: 1000 cycles
- Mechanical operations: 4000 cycles
- Connection type: Screw terminal
- Thermal protection nob setting: 1 - 1
- Dimensions (H x L x W): 130mm x 68mm x 25mm
- Weight: 1.5 kg
Key Features
- Rated current of 80A with a breaking capacity of 25kA.
- Fast tripping response time of 10 ms.
- IP4X ingress protection for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in commercial and industrial settings
- Residential: Protection for home electrical systems
Standards & Compliance
- Complies with AS/NZS 60947 for safety and performance standards.
Environmental Benefits
- RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Moulded Case Circuit Breaker h3 x160 TM FIX 1P1D 80A 25kA CTC is available now for immediate purchase. Ideal for industrial and residential electrical protection.
