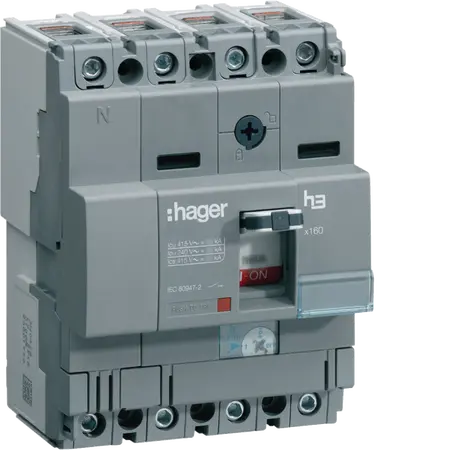

Moulded Case Circuit Breaker x160 4P | 40kA 40A | IP4X Protection by Hager
Moulded case circuit breaker with 40A rated current and 40kA breaking capacity—ideal for industrial, commercial, and residential power distribution. Built for safety with IP4X protection and four poles for versatile applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Moulded Case Circuit Breaker x160 4P 40kA 40A
Brand: Hager
SKU: HNA041U
Alternatively Known As: MCCB, Moulded Case Breaker, Circuit Breaker 40A
Technical Specifications
- Rated current: 40 A
- Rated ultimate short-circuit breaking capacity Icu under 400 V AC: 40 kA
- Rated ultimate short-circuit breaking capacity Icu under 240 V AC: 85 kA
- Number of poles: 4
- Frequency: 50 - 60 Hz
- Rated insulation voltage Ui: 690 V
- Rated operational voltage Ue: 220 - 415 V
- Total power loss under IN: 11 W
- Electric endurance: 1000 cycles
- Mechanical operations: 4000
- Ingress Protection (IP) class: IP4X
- Connection: Screw terminal for flexible conductor 4 - 70 mm², rigid conductor 4 - 95 mm²
- Nominal tightening torque: 6 - 6 Nm
- Dimensions (H x L x W): 200mm x 150mm x 100mm
- Weight: 2.5 kg
Key Features
- Rated current of 40 A with a breaking capacity of 40 kA.
- Four poles for versatile applications.
- IP4X ingress protection for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical protection in office buildings
- Residential: Main electrical supply protection in homes
Standards & Compliance
- Complies with AS/NZS 60947 for safety and performance standards.
Environmental Benefits
- Designed for energy efficiency, reducing overall power loss.
Warranty Information
3 years warranty against manufacturing defects.
Available Now
The Moulded Case Circuit Breaker x160 4P 40kA 40A is available now for immediate purchase. Ideal for industrial, commercial, and residential applications.
