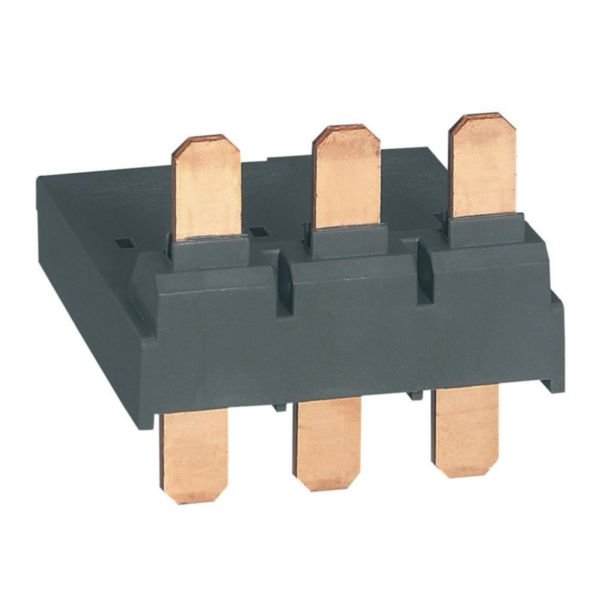

Mounting Adaptor MPX3 63H for CTX3 65DC | Direct Circuit Adaptor | 3 Poles Compatible | @EA of 1 | by Legrand
The Mounting Adaptor MPX3 63H for CTX3 65DC is a direct circuit adaptor designed for seamless connections between MPX3 MPCBs and CTX3 contactors. Ideal for tertiary and industrial electrical installations, this adaptor supports 3 poles and features cage type terminals for easy installation. Built for efficiency, it reduces installation time and enhances reliability in control and signaling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Mounting Adaptor MPX3 63H for CTX3 65DC | Direct Circuit Adaptor | 3 Poles Compatible | @EA of 1 | by Legrand
Brand: Legrand
SKU: 417457
Alternatively Known As: MPX3 63H Mounting Adapter, CTX3 65DC Mounting Adaptor, Legrand MPX3 Contactors Adapter
Technical Specifications
- Suitable for number of poles: 3
- Type: Direct circuit adaptor
- Compatible with MPX3 63H and CTX3 65 DC contactors
- Connection type: Cage terminals
- Dimensions (H x L x W): 40mm x 80mm x 60mm
- Weight: 0.2 kg
Key Features
- Direct adaptor and mounting unit for MPX3 63H with CTX3 65 DC
- Enables simple and fast connection between MPX3 MPCBs and CTX3 contactors
- Designed for use with cage type terminals
- Suitable for 3 poles
Professional Installation Requirements
- Installation should be performed by a qualified electrician following product instructions to ensure safety and compliance.
Applications
- Tertiary and industrial electrical installations
- Mounting CTX3 contactors under MPX3 MPCBs
- Control and signalling in switchboards and power cabinets
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Facilitates efficient electrical connections reducing installation time and waste
- Durable design reduces need for frequent replacements
Warranty Information
Standard Legrand warranty applies, typically 1 year against manufacturing defects.
Available Now
Legrand Mounting Adaptator MPX3 63H for CTX3 65DC is available for immediate purchase, ideal for industrial and tertiary electrical installations.
