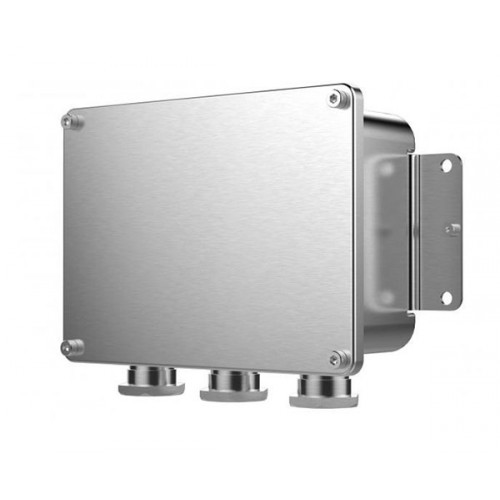

Mounting Box Stainless Steel Hikvision
Hikvision mounting box features stainless steel construction. Ideal for CCTV installs needing a robust camera mounting box.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision Stainless Steel Mounting Box, Hikvision DS-1284ZJ-M Junction Box, 316L Stainless Steel Camera Mount
Technical Specifications
- Product Type: CCTV camera junction box
- Material: 316L stainless steel
- Appearance: Natural stainless steel colour
- Application: Suitable for compatible bullet and turret cameras
- Maximum Load: 3 kg
- Installation Environment: Indoor and outdoor installation
- Mounting Requirement: Install on a flat wall capable of supporting more than three times the total camera and mount weight
- Outdoor Installation: Waterproof rubber required for exposed installations
- Dimensions (H x L x W): 135mm x 229mm x 210mm
- Weight: 1.981 kg
Key Features
- Robust 316L stainless steel construction
- Designed for compatible Hikvision bullet and turret cameras
- Provides a secure mounting interface and concealed cable-management space
- Suitable for indoor and outdoor CCTV installations
- Supports camera and accessory loads up to 3 kg
- Corrosion-resistant material for demanding installation environments
Applications
- Mounting compatible Hikvision bullet cameras
- Mounting compatible Hikvision turret cameras
- Commercial and industrial CCTV installations
- Outdoor surveillance installations requiring stainless steel mounting hardware
- Installations requiring concealed camera cable connections
Standards & Compliance
- Relevant CCTV installation guidance: AS 4806.2-2006 for the selection, planning and installation of CCTV systems
- Relevant video surveillance system requirements: AS/NZS 62676.1.1:2020, where applicable to the wider CCTV system
Environmental Benefits
- 316L stainless steel is durable and corrosion resistant, helping extend service life and reduce replacement waste
- Stainless steel is highly recyclable at end of service life
- Passive mounting accessory with no electronic components or operational energy consumption
Warranty Information
Hikvision Australia warranty coverage for accessories is subject to the applicable sales and purchase agreement and authorised-distributor terms. The standard three-year Australian warranty commonly offered for Hikvision CCTV accessories should be confirmed at purchase.
Available Now
Available through Hikvision and authorised Australian security, CCTV and electrical distributors.
