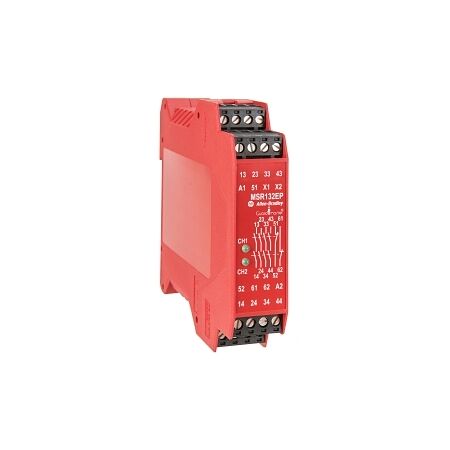

MSR Safety Relay Expansion Module | 24VAC/DC | 4NO Safety Outputs | IP40 Protection by NHP
MSR safety relay expansion module with 24VAC/DC voltage and 4NO safety outputs—ideal for industrial safety monitoring. Built for machinery and equipment, with IP40 protection and rail mounting for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AB 440R MSR Expansion Module 24VAC/DC 1NC/2NC-IN 4NO-SFTY 2NC-AUX AM
Brand: NHP
SKU: 440RE23097
Alternatively Known As: MSR Safety Relay Expansion Module
Technical Specifications
- Voltage type for actuating: AC/DC
- Control supply voltage: 24 V
- Max shock acceleration: 10 g
- Max vibration displacement: 0.35 mm
- Max vibration frequency operational: 55 Hz
- Ambient temperature during operating: -5 to 55 °C
- SIL according to IEC 61508: 3
- Dimensions (H x L x W): 99mm x 114.5mm x 22.5mm
- Weight: 0.22 kg
Key Features
- Safety category according to EN ISO 13849-1: 4
- Performance level according to EN ISO 13849-1: Level e
- 4 safety-related undelayed outputs
- Screw connection for electric connection
- Rail mounting possible
- IP40 degree of protection
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal safety.
Applications
- Industrial: Safety monitoring in machinery and equipment
- Commercial: Automation systems requiring safety relays
Standards & Compliance
- Complies with relevant safety standards for industrial applications.
Environmental Benefits
- Designed for efficient operation in various ambient temperatures.
Warranty Information
Standard warranty applies.
Available Now
The NHP AB 440R MSR Expansion Module is available now for immediate purchase. Ideal for industrial safety monitoring applications.
