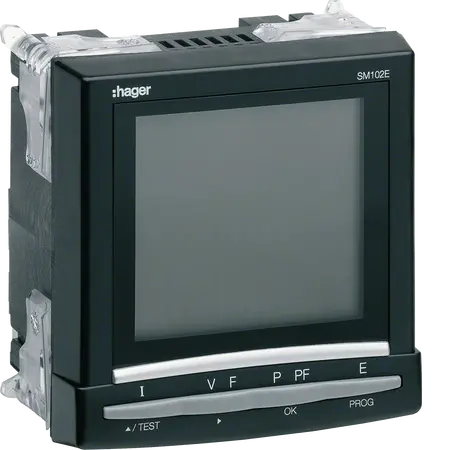

Multi-function Measurement Device | 50-60 Hz | LCD Display | IP51 Rated by Hager

BRAND: :hager

SKU: SM102E

$994.10 List price: $1,271.10

+ −

30 Days Return Delivery Options

Multi-function measurement device with 50-60 Hz frequency range and LCD display—ideal for precise electrical measurements in homes and commercial spaces. Built for reliability, with IP51 protection for various environments.

Description
Attachments

Product Name/Title: Multi-function measurement device

Brand: Hager

SKU: SM102E

Alternatively Known As: Digital Multi-function Meter, Electrical Measurement Device, Multi-function Meter

Technical Specifications

Frequency: 50 - 60 Hz
Operating temperature: -10 - 55 °C
Storage/transport temperature: -20 - 80 °C
Connection type: Screw terminal
Flexible conductor cross-section: 2.5 - 6 mm²
Rigid conductor cross-section: 2.5 - 6 mm²
Total power loss under IN: 10 W
Power consumption: 10 VA
Measurement frequency range: 45 - 65 Hz
Current measurement range: 0 - 9999 A
Mounting: Flush mounting, Surface mounting
Dimensions (H x L x W): 96mm x 60mm x 96mm
Weight: 0.5 kg

Key Features

Multi-function measurement capabilities including frequency and current measurement.
LCD display for easy reading of measurements.
IP51 ingress protection for reliable operation in various environments.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, offices
Commercial: Retail, hospitality, workspaces
General: Any location requiring precise electrical measurements

Standards & Compliance

Complies with AS/NZS 60950 for safety of IT and communication equipment.

Environmental Benefits

Designed to reduce carbon footprint and improve environmental performance.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager Multi-function Measurement Device is available now for immediate purchase. Ideal for residential and commercial applications requiring accurate electrical measurements.

SM102E (SM102E, 226 Kb) [Download]

reach_declaration_SM102E1.pdf (reach_declaration_SM102E1.pdf, 103 Kb) [Download]

rohs_declaration_SM102E1.pdf (rohs_declaration_SM102E1.pdf, 104 Kb) [Download]

IN1_SM102E_6S5070_00B.pdf (IN1_SM102E_6S5070_00B.pdf, 4,215 Kb) [Download]
