Multi Function Tester | 200Ω Continuity & 200MΩ Insulation | RCD Testing | by Rapid Tech
The Multi Function Tester is designed for professional electrical testing, featuring 200Ω continuity and 200MΩ insulation resistance measurements. Ideal for electricians, it offers RCD testing across multiple currents and built-in memory for up to 300 results, ensuring safety compliance and efficiency in electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

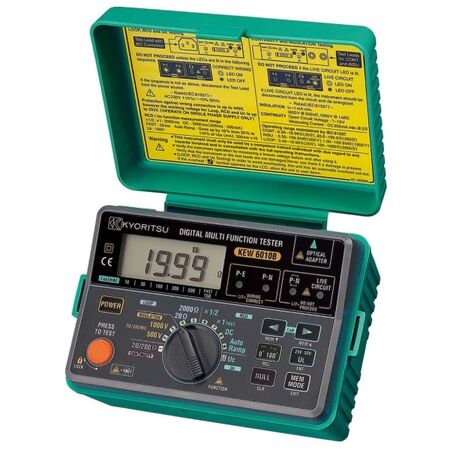

Product Name/Title: Multi Function Tester | 200Ω Continuity & 200MΩ Insulation | RCD Testing | by Rapid Tech
Brand: Rapid Tech
SKU: 6010B
Alternatively Known As: Multifunction Electrical Tester, Kyoritsu 6010B Tester, Insulation and Continuity Meter, Loop and RCD Tester
Technical Specifications
- Continuity: 20/200Ω with 200mA test current
- Insulation: 500/1000V, 20/200MΩ with 1mA rated test current
- Loop Impedance: 20/2000Ω with 15mA test current at 2000Ω (no RCD trip)
- RCD Testing: 10/30/100/300/500mA with x1/2, x1, fast trip (40ms), DC, auto ramp
- Contact Voltage (Uc): 100V
- Data Memory: Stores up to 300 measured results
- Safety Standards: Designed to IEC 61010-1, IEC 61557
- Dimensions (H x L x W): 90mm x 80mm x 180mm
- Weight: 1.2 kg
Key Features
- Continuity testing up to 200Ω with 200mA DC short circuit current
- Insulation resistance measurement up to 200MΩ with 500 V DC test voltage
- Loop impedance testing up to 2000Ω with 15mA test current
- RCD testing across multiple currents (10/30/100/300/500 mA) with auto ramp function
- Contact voltage measurement up to 100V
- Built-in memory to store up to 300 measured results

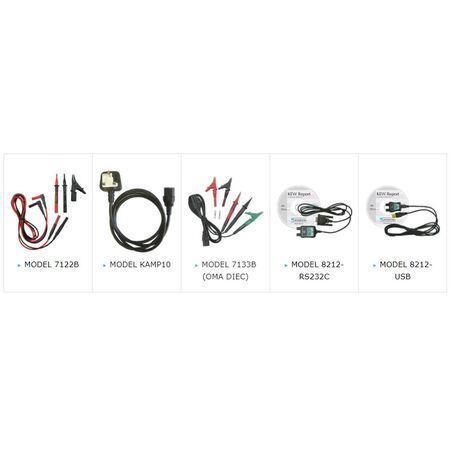

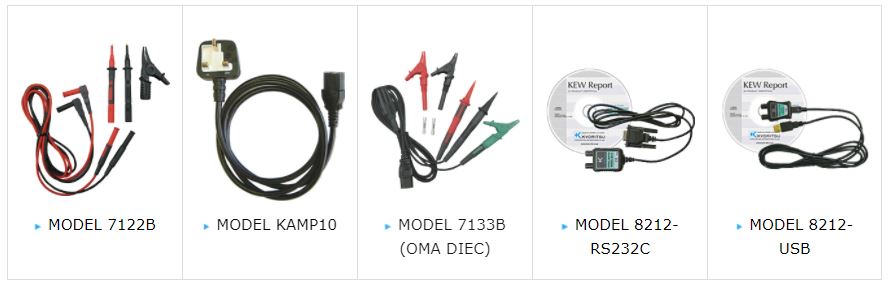

- Data transfer to PC via optional communication adaptor and KEW Report software
- Safety features include live circuit warning LED and overload protection
Professional Installation Requirements
- Should be operated by qualified electricians or trained professionals to ensure accurate testing and safety compliance.
Applications
- Electrical testing for continuity, insulation resistance, loop impedance, and RCD testing
- Suitable for electricians and electrical maintenance professionals
- Testing and verification of electrical installations and safety compliance
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Helps ensure electrical safety and efficiency, reducing energy waste and electrical faults
- Supports maintenance of electrical systems to prevent hazardous failures
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Rapid Tech Multi Function Tester Kyoritsu 6010B is available now for immediate purchase. Ideal for professional electrical testing and maintenance applications.
