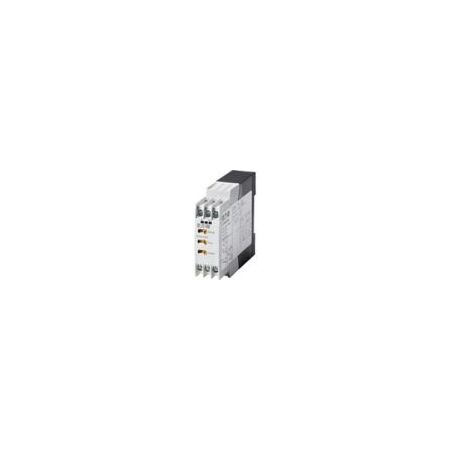

Multi-Function Timer Relay | 0.05s to 100h Timing Range | 3A Current Rating | IP20 Protection by Eaton

BRAND: Eaton
SKU: Y7-31891
$521.40 List price: $649.80
+ −
30 Days Return Delivery Options
The ETR4-69-A multi-function timer relay offers adjustable timing from 0.05 seconds to 100 hours, making it ideal for industrial automation and precise timing control. With a 3A current rating and IP20 protection, it's built for reliable performance in electrical circuits and machinery.

Product Name/Title: Multi-Function Timer Relay | 0.05s to 100h Timing Range | 3A Current Rating | IP20 Protection by Eaton

Brand: Eaton

SKU: Y7-31891

Alternatively Known As: ETR4 Timer Relay, Eaton Timing Relay, Multi-function Timer Relay, Industrial Timer Relay

Technical Specifications
  • Power consumption: 2 VA at AC, 1.8 W at DC
  • Time range: 0.05 seconds to 360,000 seconds (100 hours)
  • Rated operational current: 3 A at AC-14/AC-15, 1.5 A at DC-11
  • Rated operational voltage: up to 440 V AC
  • Contact changeover time: 4 ms
  • Command time: 30 ms DC, 50 ms AC
  • Operating temperature range: -25 °C to 60 °C
  • Storage temperature range: -45 °C to 85 °C
  • Terminal capacity: 0.5 - 2.5 mm² flexible or solid conductors
  • Overvoltage category III, Pollution degree 2
  • Rated impulse withstand voltage: 4000 V AC / 6000 V AC
  • Shock resistance: 4 g mechanical
  • Degree of protection: IP20
  • Dimensions (H x L x W): 83mm x 103mm x 23mm
  • Weight: 0.11 kg
Key Features
  • Multi-function timing relay with adjustable timing from 0.05 seconds to 100 hours
  • Supports flashing, pulse initiating, on- and off-delayed functions
  • Single change-over contact with 3 A nominal current rating
  • Suitable for DIN rail (top hat rail) mounting
  • Wide operating voltage range: 24-240 V AC/DC
  • Mechanical lifespan of 30 million operations
  • IP20 degree of protection for terminals
  • Shock resistance compliant with IEC/EN 60068-2-27
  • High immunity to electromagnetic interference and radio interference class B
  • Safe isolation of 250 V AC between coil and auxiliary contacts
Professional Installation Requirements
  • Installation should be performed by a qualified electrician or technician familiar with industrial control equipment and DIN rail mounting standards to ensure safety and compliance.
Applications
  • Industrial automation control systems
  • Timing control in electrical circuits
  • Machinery and process control requiring precise timing functions
  • Panel building and electrical switchgear assemblies
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Long mechanical lifespan reduces replacement frequency and waste
  • Energy-efficient operation with low power consumption
  • Complies with standards ensuring safe and reliable operation, minimizing environmental hazards
Warranty Information

Warranty terms as provided by Eaton, typically covering manufacturing defects. Refer to Eaton's official warranty policy for details.

Available Now

The Eaton Moeller ETR4 Timing Relay is available for immediate purchase, ideal for industrial automation and control panel applications.

Product specifications (skuPage.031891.pdf, 91 Kb) [Download]
