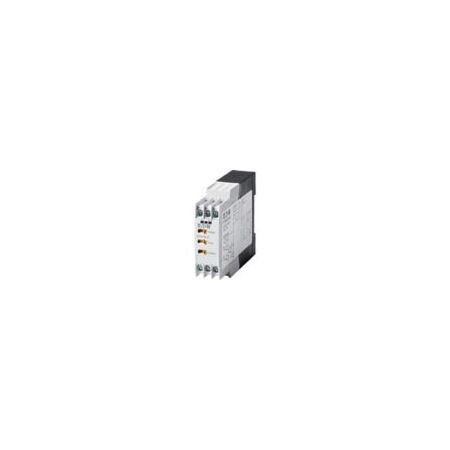

Multi-Function Timer Relay | 0.05s to 100h Time Range | 3A Nominal Current | DIN Rail Mount by Eaton

BRAND: Eaton
SKU: Y7-31887
$521.40 List price: $649.80
+ −
30 Days Return Delivery Options
The ETR4-69-W multi-function timer relay offers a time range from 0.05 seconds to 100 hours and a nominal current of 3A, making it ideal for industrial automation and control systems. Built for precise timing control, it features a secure screw connection and a long mechanical lifespan of 30 million operations.

Product Name/Title: Multi-Function Timer Relay | 0.05s to 100h Time Range | 3A Nominal Current | DIN Rail Mount by Eaton

Brand: Eaton

SKU: Y7-31887

Alternatively Known As: ETR4 Timer Relay, Eaton Timing Relay, Multi-function Timer, Industrial Timer Relay, DIN Rail Timer

Technical Specifications
  • Power consumption: 0.5 VA at AC
  • Time range: 0.05 seconds to 360000 seconds (100 hours)
  • Nominal current: 3 A
  • Rated operational voltage: up to 440 V AC
  • Rated insulation voltage: 600 V
  • Rated impulse withstand voltage: 6000 V AC
  • Contact changeover time: 4 ms
  • Command time: 50 ms AC
  • Operating temperature range: -25 °C to 60 °C
  • Degree of protection: Terminals IP20
  • Shock resistance: 4 g mechanical
  • Mounting: DIN rail (top hat rail)
  • Connection type: Screw connection
  • Rated breaking capacity: 3 A at AC-15 (220 V)
  • Rated making capacity: up to 50 A (AC-15, 220 V)
  • Repetition accuracy: ≤ 0.5% deviation
  • Duty factor: 100%
  • Operating frequency: 4000 operations/hour
  • Dimensions (H x L x W): 83mm x 103mm x 23mm
  • Weight: 0.109 kg
Key Features
  • Multi-function timing relay with various timing modes including delay on energization, delay on de-energization, pulse generation, and clock functions
  • Wide time range from 0.05 seconds to 100 hours
  • Rated for 400 V AC operation with 3 A nominal current
  • Screw connection type for secure wiring
  • High mechanical lifespan of 30,000,000 operations
  • Suitable for DIN rail (top hat rail) mounting
  • Overvoltage category III and pollution degree 2
  • Shock resistance of 4 g according to IEC/EN 60068-2-27
  • Rated insulation voltage of 600 V and rated impulse withstand voltage of 6000 V AC
  • Complies with multiple IEC/EN standards for electromagnetic compatibility and safety
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safe operation.
Applications
  • Industrial automation and control systems
  • Timing control in electrical circuits
  • Panel building and electrical switchgear
  • Machinery requiring precise timing functions
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Long mechanical lifespan reduces waste and replacement frequency
  • Energy-efficient operation with low power consumption (0.5 VA)
  • Designed for reliable performance minimizing downtime and resource use
Warranty Information

Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.

Available Now

The Eaton Moeller ETR4 Timing Relay is available for immediate purchase, ideal for industrial automation and control panel applications.

Product specifications (skuPage.031887.pdf, 91 Kb) [Download]
