Multi Function Timer Relay 12-240V AC/DC | 0.1s-100hr | DIN Rail by NHP
Multi function timer relay with 12-240V AC/DC supply and 0.1-second to 100-hour range—ideal for industrial automation and commercial HVAC systems. Built for precise timing control, with easy screw connection and DIN rail mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

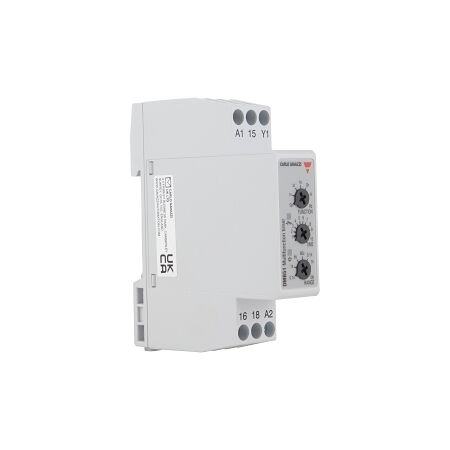

Product Name/Title: Multi Function Timer Relay 12-240V AC/DC | 0.1s-100hr | DIN Rail by NHP
Brand: NHP
SKU: DMB51CW24
Alternatively Known As: Multi Function Timer Relay, Timer Relay AC DC, Carlo Gavazzi Timer
Technical Specifications
- Voltage Type: AC/DC
- Rated Control Supply Voltage: 12-240V
- Number of Outputs: 1 delayed change-over contact
- Rated Operation Current: 0.2A at DC 12-24V, 2.5A at AC 15-250V
- Time Setting Accuracy: 5%
- Power Consumption: 0.5 VA
- Electrical Lifespan: 200,000 cycles
- Mechanical Lifetime: 30,000,000 cycles
- Operating Temperature: -25 to 45 °C
- Dimensions (H x L x W): 80mm x 109mm x 22.5mm
- Weight: 0.3 kg
Key Features
- Multi-function timer relay with a time range of 0.1 seconds to 100 hours.
- Rated control supply voltage of 12-240V AC/DC.
- Screw connection for easy installation.
- Suitable for DIN rail mounting.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, machinery control
- Commercial: HVAC systems, lighting control
- Residential: Home automation, timer-based applications
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Helps prevent electrical failures and reduces energy waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Carlo Gavazzi Timer Relay Multi Function 12V to 240V AC DC Supply 2CO 0.1-Sec100Hr is available now for immediate purchase. Ideal for industrial and commercial applications requiring precise timing control.
