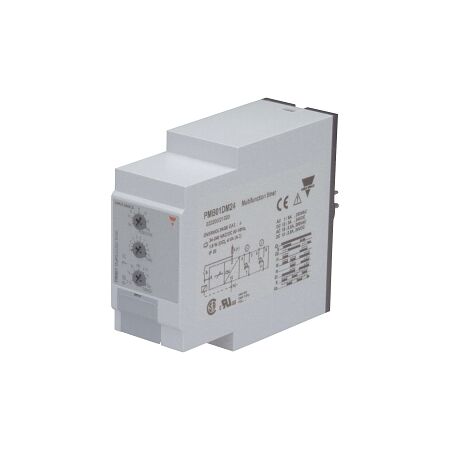

Multi Function Timer Relay 24V DC | 0.1s-100Hr | DIN Rail Mount by NHP
Multi-function timer relay with 24V DC supply and adjustable time range from 0.1 seconds to 100 hours—ideal for industrial automation and control systems. Built for versatility, with DIN rail mount for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Carlo Gavazzi Timer Relay Multi Function 24V DC Supply 2 CO PNP NPN NAM 0.1secs-100Hr
Brand: NHP
SKU: DMC01D724
Alternatively Known As: 24V Timer Relay, Multi Function Timer, Carlo Gavazzi Timer
Technical Specifications
- Voltage Type: AC and DC
- Rated Control Supply Voltage: 24 V DC
- Number of Outputs: 1 delayed changeover contact
- Rated Operation Current: 0.2 A at DC 12-24 V
- Time Range: 0.1 to 360000 seconds
- Power Consumption: 0.5 VA
- Electrical Lifespan: 200,000 cycles
- Mechanical Lifetime: 30,000,000 cycles
- Operating Temperature: -25 to 45 °C
- Dimensions (H x L x W): 80mm x 109mm x 22.5mm
- Weight: 0.5 kg
Key Features
- Multi-function timer relay with adjustable time range from 0.1 seconds to 100 hours.
- Compatible with both AC and DC supply voltages.
- DIN rail mountable for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal performance.
Applications
- Industrial automation systems
- Control systems requiring timed operations
- HVAC systems for delay functions
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Carlo Gavazzi Timer Relay Multi Function 24V DC Supply is available now for immediate purchase. Ideal for industrial automation and control systems.
Non-Returnable & Non-Cancellable
