Multi-Function Timer Relay 24V DC/AC | 0.1 Sec-100Hr | 1CO Output by NHP
Multi-function timer relay with adjustable 0.1 sec to 100 hr settings, compatible with 24V DC and 24-240V AC supply—ideal for industrial automation and commercial HVAC systems. Built for precision timing control, with energy-efficient design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

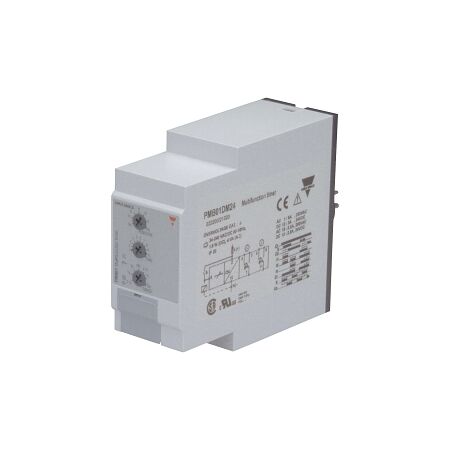

Product Name/Title: Carlo Gavazzi Timer Relay Multi Function 24V DC and 24 and 240V AC Supply 1CO 0.1 Sec-100Hr
Brand: NHP
SKU: DMB01CM24
Alternatively Known As: Timer Relay, Multi Function Timer, Carlo Gavazzi Timer
Technical Specifications
- Voltage Type: AC/DC
- Rated Control Supply Voltage (DC): 24 V
- Rated Control Supply Voltage (AC 60 Hz): 20.4-264 V
- Rated Control Supply Voltage (AC 50 Hz): 24-240 V
- Number of Outputs: 1 CO
- Rated Operation Current (DC 12-24 V): 0.2 A
- Rated Operation Current (DC 13-24 V): 2.5 A
- Rated Operation Current (AC 15-250 V): 2.5 A
- Time Range: 0.1-360000 s
- Time Setting Accuracy: 5 %
- Power Consumption: 0.5 VA
- Electrical Lifespan: 200,000 cycles
- Mechanical Lifespan: 30,000,000 cycles
- Operating Temperature: -25 to 45 °C
- Dimensions (H x L x W): 80mm x 109mm x 22.5mm
- Weight: 0.5 kg
Key Features
- Multi-function timer relay with adjustable time settings from 0.1 seconds to 100 hours.
- Compatible with both AC and DC supply voltages.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, machinery control
- Commercial: HVAC systems, lighting control
- General: Any application requiring timed relay functions
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Energy-efficient design minimizes power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Carlo Gavazzi Timer Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring precise timing control.
