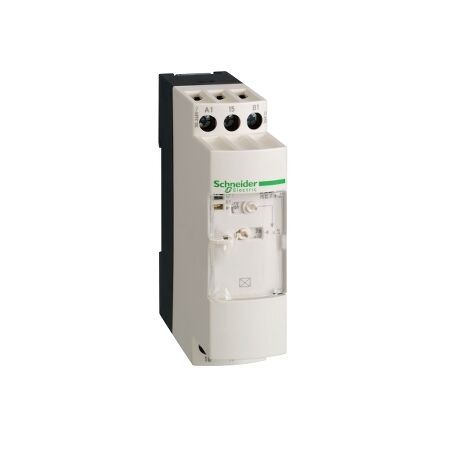

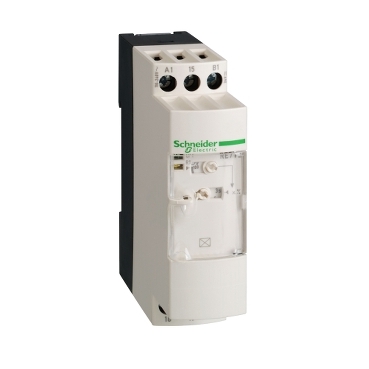

Multi-Function Timer Relay RE7TP13BU | 8 Selectable Timing Functions | 24-240V AC/DC | Compact DIN Rail Mount | @Pack of 1 | by Clipsal
The Multi-Function Timer Relay RE7TP13BU is designed for industrial automation and control systems, featuring 8 selectable timing functions and a wide supply voltage range of 24-240V AC/DC. With a compact DIN rail mount and LED status indicators, it's perfect for optimizing equipment run times and reducing power consumption in various applications, including HVAC and lighting control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Multi-Function Timer Relay RE7TP13BU | 8 Selectable Timing Functions | 24-240V AC/DC | Compact DIN Rail Mount | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHRE7TP13BU
Alternatively Known As: Clipsal timer relay, Schneider RE7TP13BU, multi-function timer, DIN rail timer relay, industrial timer relay
Technical Specifications
- Supply voltage: 24-240V AC/DC
- Timing functions: 8 selectable (e.g., delay on, interval, cyclic, etc.)
- Time delay range: 0.1 seconds to 100 hours
- Contact configuration: 1 C/O (SPDT)
- Contact rating: 8A at 250V AC
- Mounting: 35mm DIN rail
- Status indication: LED for power and relay output
- Operating temperature: -20°C to +50°C
- Dimensions (H x L x W): 85mm x 69mm x 17.5mm
- Weight: 0.15 kg
Key Features
- Multi-function timer relay with 8 selectable timing functions
- Wide supply voltage range: 24-240V AC/DC
- Time delay range: 0.1s to 100h
- Compact 17.5mm DIN rail mounting
- LED status indicators for power and relay output
- 1 changeover (SPDT) contact rated at 8A
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local wiring rules and standards.
Applications
- Industrial automation panels
- Control cabinets
- Building management systems
- Lighting control
- HVAC systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables energy-efficient automation by optimizing equipment run times
- Reduces unnecessary power consumption in control systems
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal RE7TP13BU Multi-function Timer Relay is available for immediate purchase. Ideal for industrial automation, control panels, and building management systems.
