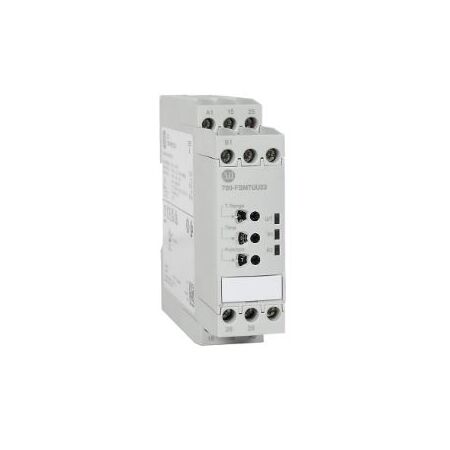

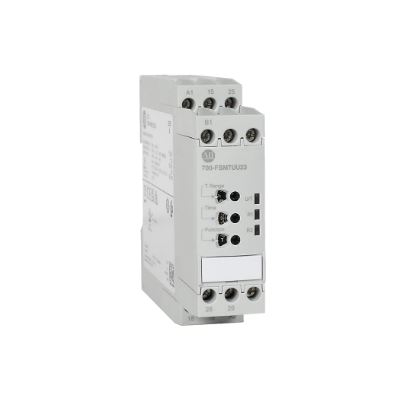

Multi-Function Timing Relay | DPDT Contact Configuration | 0.05s to 300h Timing Range | by Allen-Bradley
The Multi-Function Timing Relay by Allen-Bradley features a versatile DPDT contact configuration and a timing range from 0.05 seconds to 300 hours, making it ideal for industrial automation control systems. Designed for precise timing control in manufacturing processes, this relay operates on 24-48 VDC or 24-240 VAC, ensuring high performance and reliability in electrical control panels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Contact Configuration: DPDT (2 Changeover contacts)
- Timing Range: 0.05 seconds to 300 hours
- Supply Voltage: 24-48 VDC / 24-240 VAC
- Frequency: 50/60 Hz
- Series: 700-FS High Performance
- Functions: 10 single timing functions
- Dimensions (H x L x W): 90mm x 70mm x 22mm
- Weight: 0.3 kg
Key Features
- Multi-function timing relay with 10 single functions
- DPDT (2 C/O) contact configuration
- Wide timing range from 0.05 seconds to 300 hours
- Operates on 24-48 VDC or 24-240 VAC, 50/60 Hz
- High performance 700-FS series
Professional Installation Requirements
- Installation should be performed by a qualified electrician or automation technician to ensure correct wiring and operation.
Applications
- Industrial automation control systems
- Timing control in manufacturing processes
- Electrical control panels requiring precise timing functions
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances energy efficiency by enabling precise timing control in automation systems
- Reduces energy waste through accurate operational timing
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 700FSM7UU23 Multi-Function Timing Relay is available now for immediate purchase. Ideal for industrial and manufacturing automation control systems.
