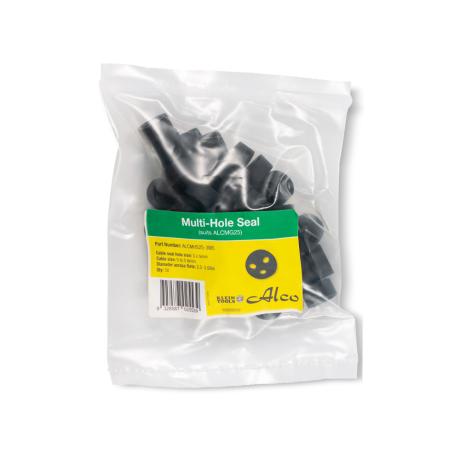

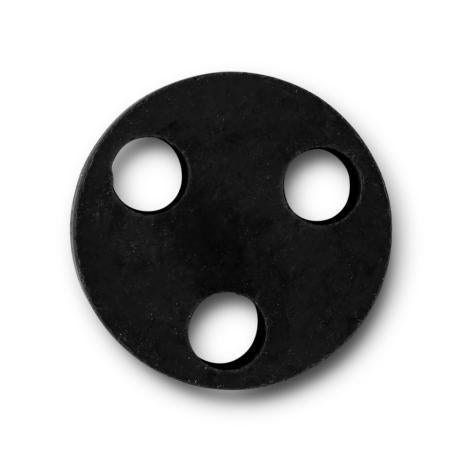

Multi-Hole Seal For Cable Gland ALCMG25 | 3x5mm Holes | IP68 Rated | Halogen-Free Material | by Wattmaster
The Multi-Hole Seal for Cable Gland ALCMG25 is designed for sealing multiple cable sheaths in electrical installations. With a temperature range of -30°C to +80°C and IP68 rating for up to 50m water depth, this neoprene seal is perfect for industrial and commercial wiring. Ideal for environments requiring reliable sealing, it accommodates 2 to 5 cables, ensuring durability and compliance with electrical standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Multi-Hole Seal For Cable Gland ALCMG25 | 3x5mm Holes | IP68 Rated | Halogen-Free Material | by Wattmaster
Brand: Wattmaster
SKU: ALCMHS25-3M5
Alternatively Known As: Multi-Hole Cable Gland Seal, Multi-Cable Seal, ALCMG25 Multi-Hole Seal
Technical Specifications
- Material: Neoprene
- Seal Size: 3x5mm holes
- Pack Quantity: 50 seals
- Temperature Range: –30°C to +80°C (up to 150°C intermittent)
- IP Rating: IP68 when fitted in ALCMG25 gland (50m water depth)
- Compatible with cable glands covering 2 to 5 cables
- Dimensions (H x L x W): 10mm x 50mm x 50mm
- Weight: 0.1 kg
Key Features
- Provides seal on multiple cable sheaths
- Covers 2, 3, 4, and 5 cables
- Halogen free material
- IP68 rated when fitted in ALCMG25 gland (up to 50m water depth)
- Temperature range from –30°C to +80°C (up to 150°C intermittent)
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper sealing and compliance with electrical standards.
Applications
- Sealing multiple cable sheaths in electrical installations
- Used with ALCMG25 cable glands for industrial and commercial wiring
- Suitable for environments requiring IP68 rated cable gland sealing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free material reduces toxic emissions in case of fire
- Durable neoprene construction extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific terms.
Available Now
The Wattmaster Multi-Hole Seal For Cable Gland ALCMG25 3x5mm 50 Pack is available now for immediate purchase. Ideal for electrical installations requiring secure and reliable multi-cable sealing.
