Multi-Hole Seal for Cable Gland ALCMG25 | Neoprene Material | IP68 Rated | -30°C to +80°C Temperature Range | by Wattmaster

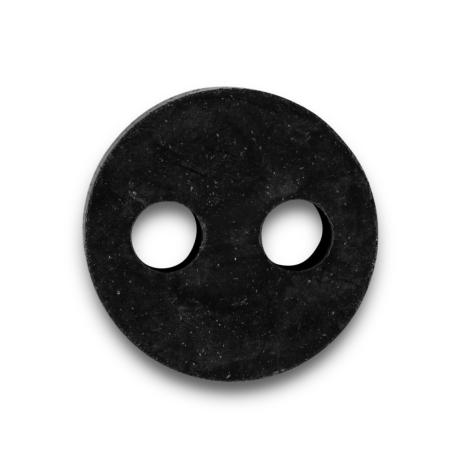

The Multi-Hole Seal for Cable Gland ALCMG25 is designed for sealing multiple cable sheaths, accommodating 2, 3, 4, and 5 cables. Made from durable neoprene, it offers an impressive IP68 rating for water resistance up to 50m depth, making it ideal for industrial, commercial, and residential electrical installations. With a temperature range of -30°C to +80°C, this seal ensures reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Multi-Hole Seal for Cable Gland ALCMG25 | Neoprene Material | IP68 Rated | -30°C to +80°C Temperature Range | by Wattmaster
Brand: Wattmaster
SKU: ALCMHS25-2M5
Alternatively Known As: Multi-hole cable gland seal, Multi-cable gland seal, Neoprene cable gland seal, Multi-hole neoprene seal
Technical Specifications
- Material: Neoprene
- Cable range: 2, 3, 4, and 5 cables
- Hole size: 2x5mm
- Temperature rating: –30°C to +80°C (up to 150°C intermittent)
- IP rating: IP68 when fitted in ALCMG25 gland (50m water depth)
- Dimensions (H x L x W): 10mm x 50mm x 50mm
- Weight: 0.1 kg
Key Features
- Provides seal on multiple cable sheaths
- Covers 2, 3, 4, and 5 cables
- Halogen free material
- IP68 rated when fitted in ALCMG25 gland (up to 50m water depth)
- Temperature range from –30°C to +80°C (up to 150°C intermittent)
- Made from durable neoprene material
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper sealing and compliance with electrical standards.
Applications
- Sealing multiple cable sheaths in electrical installations
- Used with ALCMG25 cable glands for enhanced sealing
- Suitable for industrial, commercial, and residential cable management
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen free material reduces harmful emissions in case of fire
- Durable neoprene extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now

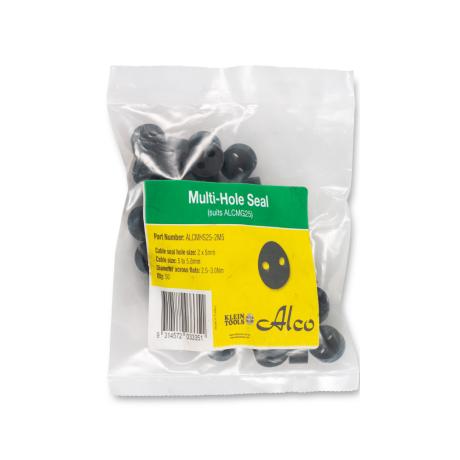

The Wattmaster Multi-Hole Seal For Cable Gland ALCMG25 2x5mm 50 Pack is available now for immediate purchase. Ideal for use in electrical cable sealing applications requiring high ingress protection.
