Multi Mode Duplex LSZH Fibre Cable | 40G/100G Support | 50/125 Microns | 10m Length | by SERVEREDGE

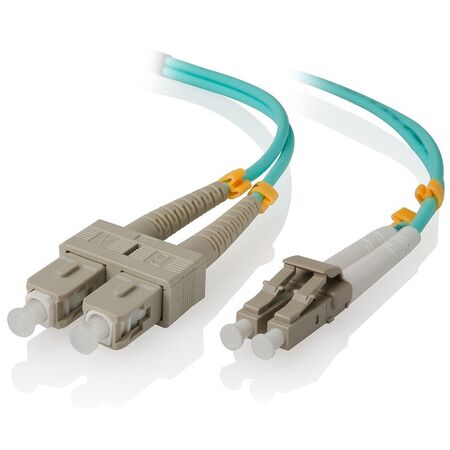

The Multi Mode Duplex LSZH Fibre Cable is designed for high-speed data transmission, supporting 40G and 100G data rates. With a 50/125 micron core/cladding diameter and a low smoke zero halogen (LSZH) jacket, it minimizes toxic emissions in case of fire, making it ideal for data centers and enterprise networks. This 10m cable is 100% optically tested, ensuring reliable performance for telecommunications infrastructure.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Multi Mode Duplex LSZH Fibre Cable | 40G/100G Support | 50/125 Microns | 10m Length | by SERVEREDGE
Brand: SERVEREDGE
SKU: LCSC-10-OM4
Alternatively Known As: OM4 Fibre Optic Cable, LSZH Fibre Cable, Multi Mode Duplex Fibre Cable, 50/125 OM4 Fibre Cable
Technical Specifications
- Fibre Type: Multi Mode OM4
- Core/Cladding Diameter: 50/125 microns
- Cable Length: 10 meters
- Jacket Material: Low Smoke Zero Halogen (LSZH)
- Data Rate Support: 40G/100G
- Connector Type: LCSC Duplex
- Dimensions (H x L x W): 5mm x 10000mm x 5mm
- Weight: 0.1 kg
Key Features
- Multi Mode OM4 fibre optic cable
- Low Smoke Zero Halogen (LSZH) jacket for minimal toxic emissions in case of fire
- 100% optically tested with test reports provided
- Supports 40G and 100G data rates
Professional Installation Requirements
- Installation by qualified network technicians or electricians is recommended to ensure optimal performance and compliance with safety standards.
Applications
- Data centers and server rooms
- High-speed network connections
- Telecommunications infrastructure
- Enterprise network installations
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- LSZH jacket reduces toxic emissions and smoke in case of fire, enhancing safety and environmental protection
Warranty Information
Standard manufacturer warranty applies; typically 1 year against defects.
Available Now
The SERVEREDGE 10m LCSC 40G/100G Multi Mode Duplex LSZH Fibre Cable 50/125 OM4 is available for immediate purchase, ideal for high-speed data transmission in data centers and enterprise networks.
