Serveredge Multi Mode Duplex Media Converter | Low Latency < 4.2 μs | High Throughput 1,488,110 pps | by SERVEREDGE

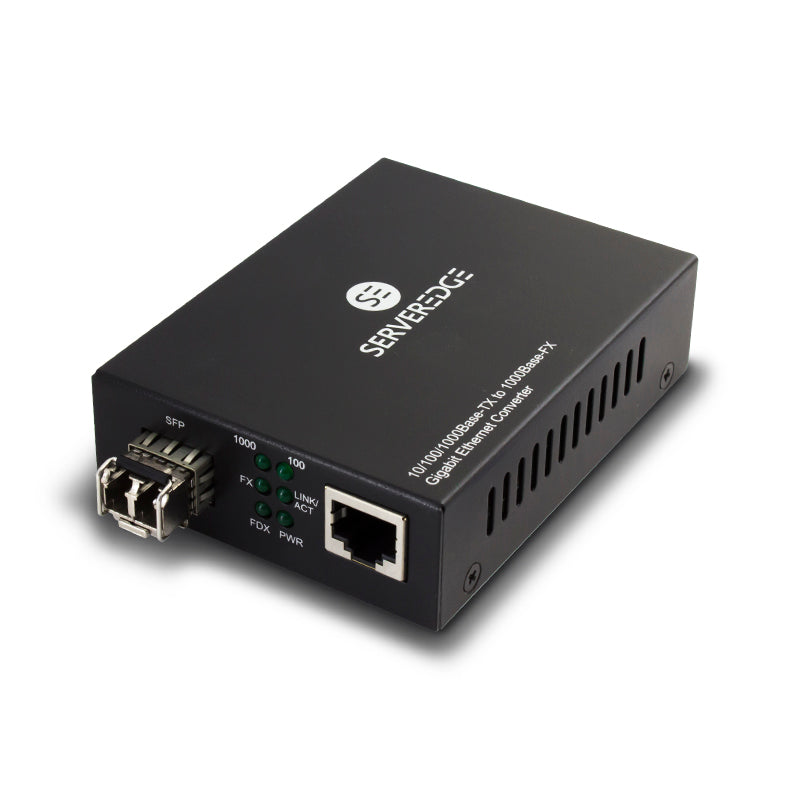

The Serveredge Multi Mode Duplex Media Converter is designed for high-performance network infrastructure, featuring low latency of less than 4.2 μs and impressive throughput of 1,488,110 pps at 1000Base. Ideal for enterprise LAN and WAN connections, this converter supports fiber optic network extension and conversion, ensuring reliable data transmission in data centers and enterprise environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Serveredge Multi Mode Duplex Media Converter | Low Latency < 4.2 μs | High Throughput 1,488,110 pps | by SERVEREDGE
Brand: SERVEREDGE
SKU: SED-1000MLC(550m)
Alternatively Known As: Fiber Media Converter, Multimode Fiber Converter, Duplex Media Converter, 1000Base-SX Converter
Technical Specifications
- Latency: < 4.2 μs (LIFO)
- Throughput @ 100Base: 148,810 pps (64-byte packets)
- Throughput @ 1000Base: 1,488,110 pps (64-byte packets)
- Fiber Interface Type: Laser Diode
- Wavelength: 850 nm nominal
- Maximum Output Power: -4.0 dBm
- Minimum Output Power: -9.5 dBm
- Sensitivity: -13.5 dBm
- Maximum Input Power: -13.5 dBm
- Link Power Budget: 4.0 dB
- Operating Temperature: 0°C to 45°C
- Storage Temperature: -10°C to 65°C
- Relative Humidity: 5% to 90%, non-condensing

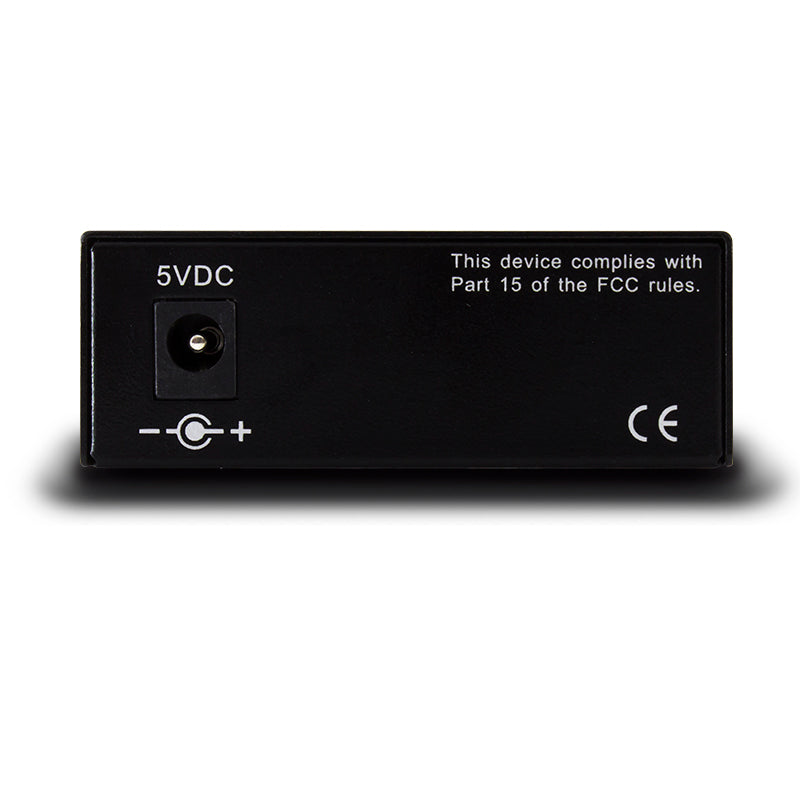

- Power Adapter: 5V, 2A
- Power Consumption: 5 Watts Maximum
- Dimensions (H x L x W): 26.8mm x 86mm x 120mm
- Weight: 0.4 kg
Key Features
- Low latency of less than 4.2 μs (LIFO)
- High throughput: 148,810 pps at 100Base and 1,488,110 pps at 1000Base
- Multimode fiber interface with laser diode type
- 850 nm nominal wavelength
- Link power budget of 4.0 dB
- Compact and lightweight design
Professional Installation Requirements
- Installation by a qualified network technician or electrician is recommended to ensure proper fiber optic connections and power supply setup.
Applications
- Network infrastructure for data centers
- Enterprise LAN and WAN connections
- Fiber optic network extension and conversion
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Supports energy-efficient network infrastructure by enabling fiber optic connectivity
- Reduces network power consumption with low power usage of 5 Watts maximum
Warranty Information
Standard manufacturer warranty applies. Please refer to SERVEREDGE warranty policy for details.
Available Now
The Serveredge Multi Mode Duplex Media Converter is available now for immediate purchase. Ideal for enterprise and data center network applications requiring reliable fiber optic media conversion.
