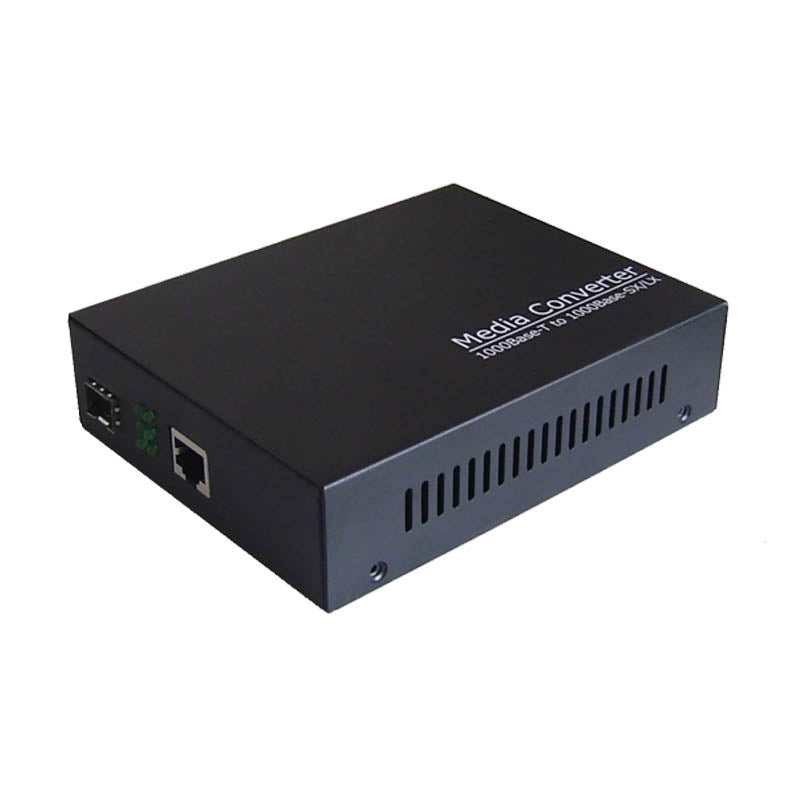

Serveredge Multi Mode SC to Single Mode SC Duplex Gigabit Media Converter | 10/100/1000 Mbps | 20 km Fiber Span | by SERVEREDGE
The Serveredge Multi Mode SC to Single Mode SC Duplex Gigabit Media Converter is designed for extending fiber optic networks, featuring a built-in twisted-pair port that supports 10/100/1000 Mbps speeds. Ideal for data centers and telecommunications, this converter ensures reliable data transmission with a maximum fiber span of 20 km, making it perfect for industrial and commercial networking environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Serveredge Multi Mode SC to Single Mode SC Duplex Gigabit Media Converter | 10/100/1000 Mbps | 20 km Fiber Span | by SERVEREDGE
Brand: SERVEREDGE
SKU: SED-GMSSC55020
Alternatively Known As: Gigabit Media Converter, Fiber Optic Media Converter, SC Duplex Media Converter, Multi Mode to Single Mode Converter
Technical Specifications
- Port: Built-in twisted-pair 10/100/1000 Mbps switch
- Connector: RJ45 with Auto-MDIX, SC/UPC fiber connector
- MAC Address Table: 1024 entries
- Architecture: Store and forward
- Fiber Type: Single mode
- Maximum Fiber Span: 20 km
- Mounting: Wall or chassis mountable
- Standards Compliance: IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3ab 1000BaseT
- Certifications: FCC Part 15 Class A, CE Mark, C-Tick
- Dimensions (H x L x W): 25mm x 120mm x 100mm
- Weight: 0.3 kg
Key Features
- Built-in twisted-pair port supporting 10/100/1000 Mbps switch
- Auto-negotiation RJ45 connector with Auto-MDIX
- SC/UPC fiber optic connector
- LED indicators for functions, link status, and activity
- Link fault signaling compatible with managed switches
- 1024 MAC address capacity
- Store and forward architecture for reliable data transmission
- Single mode fiber span up to 20 km
- Wall or chassis mountable
- Compliant with IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, and IEEE 802.3ab 1000BaseT standards
- FCC Part 15 Class A, CE Mark, and C-Tick compliant
Professional Installation Requirements
- Installation by a qualified network technician or electrician is recommended to ensure proper fiber optic and electrical connections.
Applications
- Network infrastructure for extending fiber optic connections
- Data centers and server rooms
- Telecommunications and enterprise networks
- Industrial and commercial networking environments
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Supports energy-efficient network operation by enabling fiber optic connectivity
- Reduces network power consumption through auto-negotiation and efficient data handling
Warranty Information
1 year limited warranty covering manufacturing defects.
Available Now
The Serveredge Multi Mode SC to Single Mode SC Duplex Gigabit Media Converter is available for immediate purchase, ideal for extending fiber optic networks in commercial and industrial applications.
