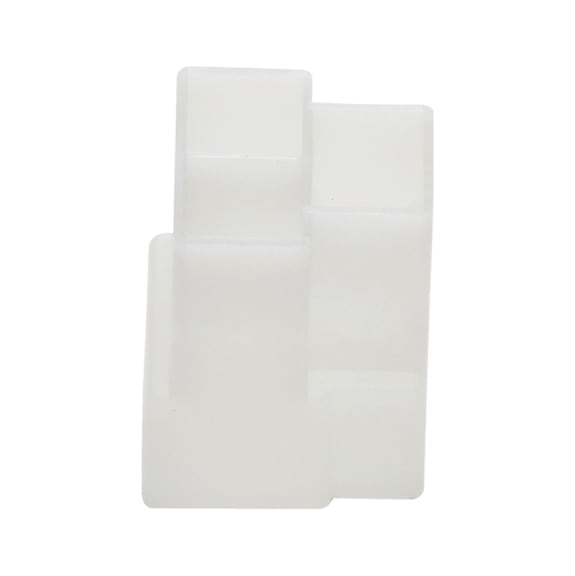

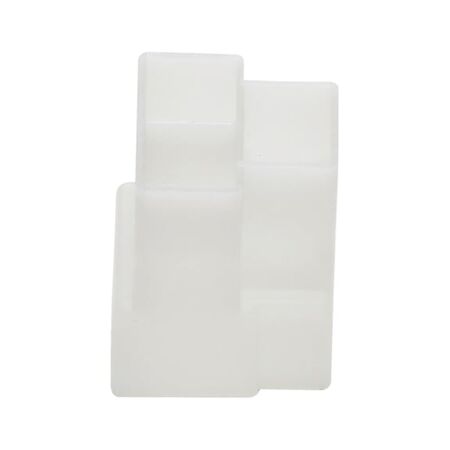

Multi-point Housing for Blade Connector 6.3 x 0.8 mm | 3 Electrical Poles | IP20 Rated | by Wurth
The Multi-point housing for blade connector 6.3 x 0.8 mm is designed to accommodate three electrical poles with a unique contact arrangement, making it ideal for various electrical wiring assemblies. Built from durable PA (Polyamide) material, it supports wire cross sections from 0.5 to 6 mm² and operates safely at a maximum voltage of 250 V AC/DC. Perfect for automotive and industrial applications, this housing ensures reliable connections in indoor environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Multi-point Housing for Blade Connector 6.3 x 0.8 mm | 3 Electrical Poles | IP20 Rated | by Wurth
Brand: Wurth
SKU: 5551003
Alternatively Known As: Blade Connector Housing, Multi-point Connector Housing, Electrical Connector Housing 6.3mm
Technical Specifications
- Number of electrical poles: 3 PCS
- Arrangement of contacts: Two parallel, one at 90° angle
- Contact gauge: 6.3 mm
- Wire cross section range: 0.5-6 mm²
- IP protection class: IP20
- Max nominal voltage: 250 V AC/DC
- Max current: 25 A
- Temperature range: -40 to 80 °C
- Material: PA - Polyamide
- Colour: Natural
- Dimensions (H x L x W): 15mm x 50mm x 30mm
- Weight: 0.05 kg
Key Features
- Houses blade connectors sized 6.3 x 0.8 mm
- Three electrical poles with two parallel and one perpendicular contact arrangement
- Supports wire cross sections from 0.5 to 6 mm²
- IP20 protection class suitable for indoor use
- Operates at max nominal voltage of 250 V AC/DC and max current of 25 A
- Temperature range from -40 to 80 °C
- Made from durable PA (Polyamide) material
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper connection and safety compliance.
Applications
- Electrical wiring assemblies
- Automotive electrical connections
- Industrial machinery wiring
- General electrical connector housing use
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable polyamide material extends product life reducing waste
- Supports efficient electrical connections reducing energy loss
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Multi-point Housing for Blade Connector 6.3 x 0.8 mm 5 PCS is available for immediate purchase, ideal for electrical and industrial connector housing applications.
