Trade Discount 21%

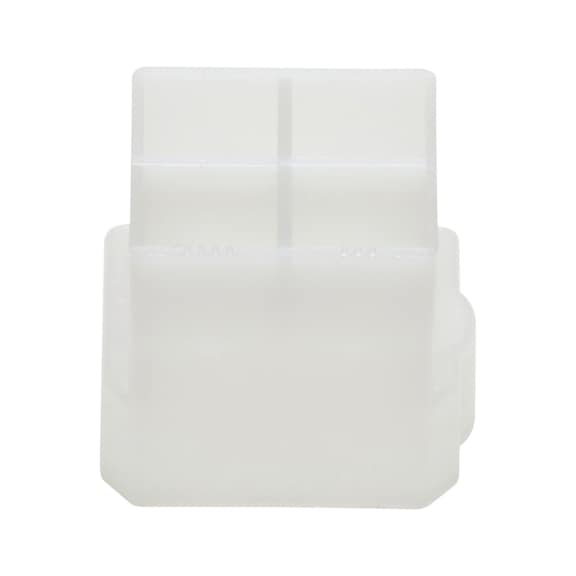

Multi-point Housing for Blade Connector 6.3 x 0.8 mm | 4 Electrical Poles | IP20 Rated | @Pack of 5 | by Wurth
The Multi-point housing for blade connector 6.3 x 0.8 mm is designed to accommodate 4 electrical poles arranged in pairs, making it ideal for automotive and industrial wiring applications. With a wire cross-section range of 0.5 to 6 mm² and an IP20 protection class, this durable polyamide housing ensures reliable connections in various environments, operating within a temperature range of -40 to 80 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Multi-point Housing for Blade Connector 6.3 x 0.8 mm | 4 Electrical Poles | IP20 Rated | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 5551004
Alternatively Known As: Blade Connector Housing, Multi-point Connector Housing, Electrical Connector Housing 6.3mm
Technical Specifications
- Number of electrical poles: 4 PCS
- Arrangement of contacts: Every two parallel
- Contact gauge: 6.3 mm
- Wire cross section range: 0.5-6 mm²
- IP protection class: IP20
- Maximum nominal voltage: 250 V AC/DC
- Maximum current: 25 A
- Operating temperature range: -40 to 80 °C
- Material: PA - Polyamide
- Colour: Natural
- Dimensions (H x L x W): 10mm x 50mm x 30mm
- Weight: 0.02 kg
Key Features
- Houses 4 electrical poles arranged in pairs parallel to each other
- Compatible with 6.3 mm blade connectors
- Supports wire cross sections from 0.5 to 6 mm²
- IP20 protection class suitable for indoor use
- Operates under temperature range from -40 to 80 °C
- Made from durable PA - Polyamide material
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Electrical connections in automotive wiring
- Industrial electrical assemblies
- General electrical and electronic equipment requiring blade connectors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable polyamide material extends product life reducing waste
- Supports efficient electrical connections reducing energy loss
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
Wurth Multi-point Housing for Blade Connector 6.3 x 0.8 mm 5 PCS is available for immediate purchase, ideal for electrical and industrial wiring applications.
