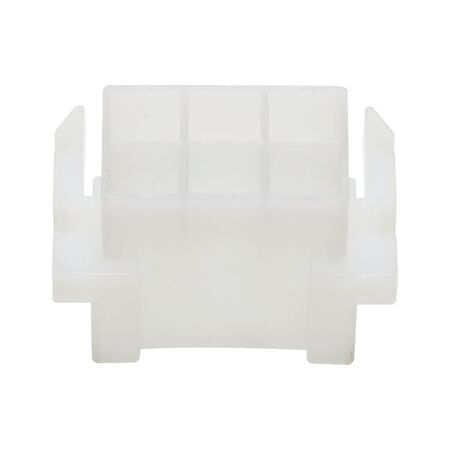

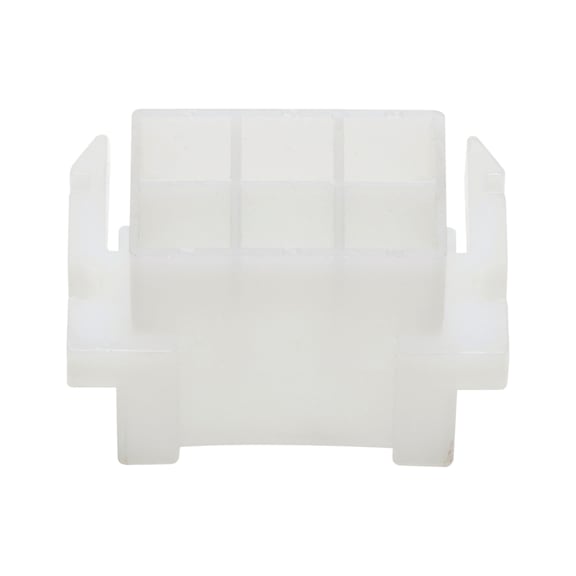

Multi-point Housing for Blade Connector 6.3 x 0.8 mm | 6 Poles | IP20 Rated | Durable PA Material | @Pack of 5 | by Wurth
The Multi-point housing for blade connector 6.3 x 0.8 mm is designed to securely house 6 blade connectors arranged in pairs, making it ideal for electrical wiring assemblies and industrial applications. With a robust IP20 rating, it operates safely up to 250 V AC/DC and 25 A, ensuring reliable performance in various environments. Made from durable polyamide, it supports wire cross sections from 0.5 to 6 mm², making it a versatile choice for automotive and general electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Multi-point Housing for Blade Connector 6.3 x 0.8 mm | 6 Poles | IP20 Rated | Durable PA Material | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 5551006
Alternatively Known As: Blade Connector Housing, Multi-point Connector Housing, Electrical Connector Housing, 6 Pole Blade Connector Holder
Technical Specifications
- Number of electrical poles: 6 PCS
- Arrangement of contacts: Every two parallel
- Contact gauge: 6.3 mm
- Wire cross section range: 0.5-6 mm²
- IP protection class: IP20
- Max. nominal voltage: 250 V AC/DC
- Max. current: 25 A
- Temperature range: -40 to 80 °C
- Material: PA - Polyamide
- Colour: Natural
- Dimensions (H x L x W): 15mm x 30mm x 60mm
- Weight: 0.05 kg
Key Features
- Houses 6 blade connectors arranged in pairs parallel to each other
- Compatible with 6.3 x 0.8 mm blade connectors
- Supports wire cross sections from 0.5 to 6 mm²
- IP20 protection class suitable for indoor use
- Operates safely up to 250 V AC/DC and 25 A current
- Temperature resistant from -40 to 80 °C
- Made from durable PA - Polyamide material
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Electrical wiring assemblies
- Industrial electrical connections
- Automotive electrical systems
- General electrical installation requiring blade connectors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable polyamide material extends product life reducing waste
- Supports efficient electrical connections reducing energy loss
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Multi-point Housing for Blade Connector 6.3 x 0.8 mm 5 PCS is available for immediate purchase, ideal for electrical wiring and industrial applications.
