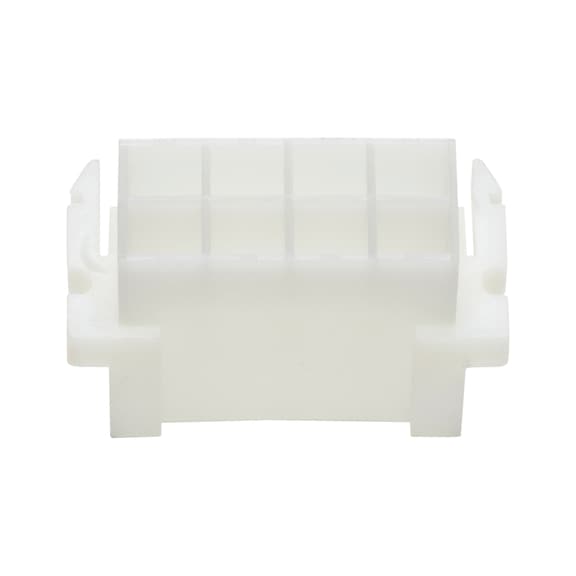

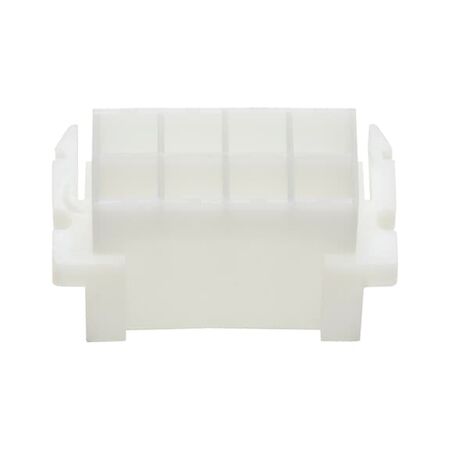

Multi-point Housing for Blade Connector 6.3 x 0.8 mm | 8 Electrical Poles | IP20 Rated | @Pack of 5 | by Wurth
The Multi-point housing for blade connector 6.3 x 0.8 mm is designed to accommodate 8 electrical poles arranged in parallel, making it ideal for electrical wiring assemblies and industrial connections. With a maximum current rating of 25 A and a temperature range of -40 to 80 °C, this durable PA - Polyamide housing ensures reliable performance in various applications, including automotive systems and general electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Multi-point Housing for Blade Connector 6.3 x 0.8 mm | 8 Electrical Poles | IP20 Rated | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 5551008
Alternatively Known As: Blade Connector Housing, Multi-point Connector Housing, Electrical Connector Housing 6.3mm
Technical Specifications
- Number of electrical poles: 8 PCS
- Arrangement of contacts: Every two parallel
- Contact gauge: 6.3 mm
- Wire cross section: 0.5-6 mm²
- IP protection class: IP20
- Max nominal voltage: 250 V AC/DC
- Max current: 25 A
- Temperature range: -40 to 80 °C
- Material: PA - Polyamide
- Colour: Natural
- Dimensions (H x L x W): 20mm x 80mm x 50mm
- Weight: 0.05 kg
Key Features
- Houses 8 electrical poles arranged every two parallel
- Compatible with 6.3 mm blade connectors
- Supports wire cross section from 0.5 to 6 mm²
- IP20 protection class suitable for indoor use
- Max nominal voltage of 250 V AC/DC
- Max current rating of 25 A
- Temperature range from -40 to 80 °C
- Made from durable PA - Polyamide material
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper connection and safety.
Applications
- Electrical wiring assemblies
- Industrial electrical connections
- Automotive electrical systems
- General electrical installation requiring blade connectors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable polyamide material reduces need for frequent replacements
- Supports efficient electrical connections reducing energy loss
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Multi-point Housing for Blade Connector 6.3 x 0.8 mm 5 PCS is available for immediate purchase, ideal for electrical wiring and industrial applications.
