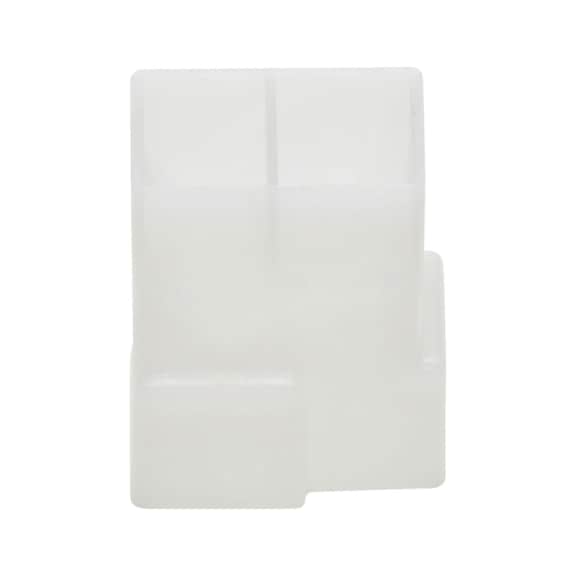

Multi-point Housing for Blade Connector 6.3 x 0.8 mm | IP20 Rated | 2 Electrical Poles | Durable PA Material | @Pack of 5 | by Wurth
Multi-point housing for blade connector 6.3 x 0.8 mm is perfect for reliable electrical connections in automotive and industrial applications. With support for 2 electrical poles arranged at a 90° angle and a temperature range of -40 to 80 °C, this durable PA housing ensures optimal performance. Ideal for qualified electricians, it meets AS/NZS 3000 standards for safety and compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Multi-point Housing for Blade Connector 6.3 x 0.8 mm | IP20 Rated | 2 Electrical Poles | Durable PA Material | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 55510022
Alternatively Known As: Blade Connector Housing, Multi-point Connector Housing, Electrical Connector Housing 6.3mm
Technical Specifications
- Number of electrical poles: 2 PCS
- Arrangement of contacts: At 90° angle to each other
- Contact gauge: 6.3 mm
- Wire cross section: 0.5-6 mm²
- IP protection class: IP20
- Max nominal voltage: 250 V AC/DC
- Max current: 25 A
- Temperature range: -40 to 80 °C
- Material: PA - Polyamide
- Colour: Natural
- Dimensions (H x L x W): 15mm x 40mm x 30mm
- Weight: 0.02 kg
Key Features
- Houses blade connectors sized 6.3 x 0.8 mm
- Supports 2 electrical poles arranged at 90° angle
- Suitable for wire cross sections from 0.5 to 6 mm²
- IP20 protection class for basic protection against solid objects
- Operates at max nominal voltage of 250 V AC/DC and max current of 25 A
- Temperature range from -40 to 80 °C
- Made from durable PA (Polyamide) material
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards.
Applications
- Electrical connections in automotive wiring
- Industrial electrical assemblies
- General electrical and electronic equipment requiring blade connectors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable polyamide material extends product life reducing waste
- Supports reliable electrical connections reducing energy loss
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
Wurth Multi-point Housing for Blade Connector 6.3 x 0.8 mm 5 PCS is available for immediate purchase, ideal for electrical and industrial wiring applications.
