Trade Discount 20%

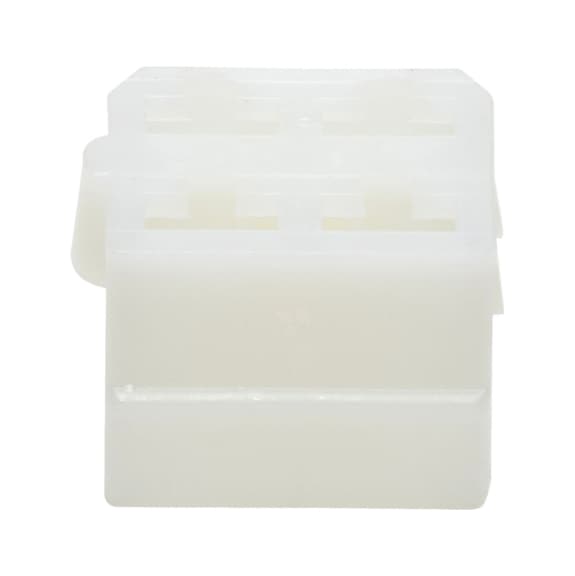

Multi-point Housing for Flat Plug-in Sleeve | 4 Electrical Poles | IP20 Rated | Natural Color | @Pack of 5 | by Wurth
Multi-point housing for flat plug-in sleeve designed for secure electrical connections, featuring 4 electrical poles arranged in parallel and a contact gauge of 6.3 mm. Ideal for industrial and commercial applications, this durable PA - Polyamide housing supports wire cross sections from 0.5 to 6 mm² and operates within a temperature range of -40 to 80 °C, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Multi-point Housing for Flat Plug-in Sleeve | 4 Electrical Poles | IP20 Rated | Natural Color | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 55510041
Alternatively Known As: Flat plug-in sleeve housing, Multi-point electrical connector housing, 6.3 mm flat blade connector housing
Technical Specifications
- Number of electrical poles: 4 PCS
- Arrangement of contacts: Every two parallel
- Contact gauge: 6.3 mm
- Wire cross section: 0.5-6 mm²
- IP protection class: IP20
- Max nominal voltage: 250 V AC/DC
- Max current: 25 A
- Temperature range: -40 to 80 °C
- Material: PA - Polyamide
- Colour: Natural
- Dimensions (H x L x W): 15mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- 4 electrical poles with every two contacts arranged parallel
- Contact gauge of 6.3 mm
- Supports wire cross section from 0.5 to 6 mm²
- IP20 protection class suitable for indoor use
- Max nominal voltage of 250 V AC/DC
- Max current rating of 25 A
- Temperature range from -40 to 80 °C
- Made from durable PA - Polyamide material
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Electrical connections in industrial and commercial equipment
- Use in control panels and electrical housings
- Suitable for wiring assemblies requiring secure plug-in connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable polyamide material reduces need for frequent replacements
- Supports efficient electrical connections reducing energy loss
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
Available for immediate purchase, ideal for electrical wiring and connection applications in industrial and commercial settings.
