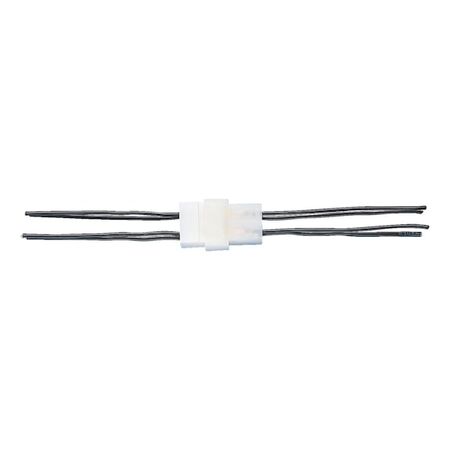

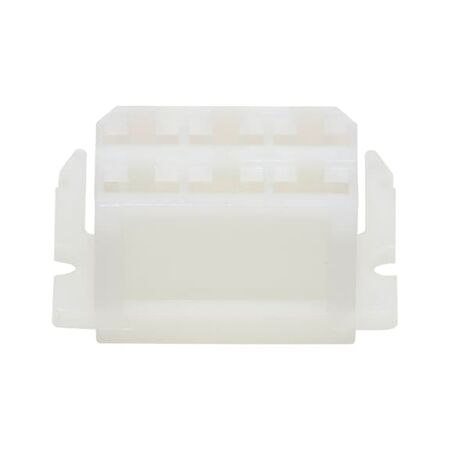

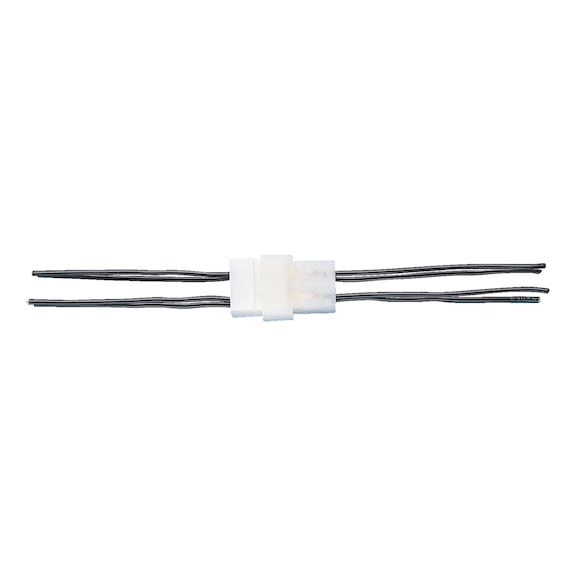

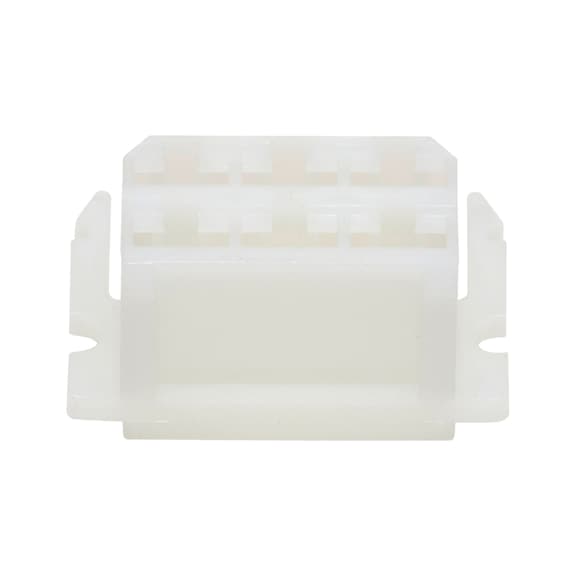

Multi-point Housing for Flat Plug-in Sleeve | 6 Poles | IP20 Rated | Durable PA Material | by Wurth
The Multi-point housing for flat plug-in sleeve is designed for secure electrical connections, featuring 6 poles arranged in pairs for optimal performance. Rated for 250 V AC/DC and 25 A, this housing is perfect for industrial and commercial applications, ensuring reliable wiring assemblies and control panel installations. Constructed from durable polyamide, it withstands temperatures from -40 to 80 °C, making it ideal for various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Multi-point Housing for Flat Plug-in Sleeve | 6 Poles | IP20 Rated | Durable PA Material | by Wurth
Brand: Wurth
SKU: 55510061
Alternatively Known As: Multi-point connector housing, Flat plug-in sleeve housing, Electrical connector housing 6 pole
Technical Specifications
- Number of electrical poles: 6 PCS
- Arrangement of contacts: Every two parallel
- Contact gauge: 6.3 mm
- Wire cross section range: 0.5-6 mm²
- IP protection class: IP20
- Max. nominal voltage: 250 V AC/DC
- Max. current: 25 A
- Temperature range: -40 to 80 °C
- Material: PA - Polyamide
- Colour: Natural
- Dimensions (H x L x W): 15mm x 30mm x 60mm
- Weight: 0.05 kg
Key Features
- Houses 6 electrical poles arranged in pairs parallel to each other
- Compatible with flat plug-in sleeves sized 6.3 x 0.8 mm
- Supports wire cross sections from 0.5 to 6 mm²
- Rated for maximum nominal voltage of 250 V AC/DC and current up to 25 A
- IP20 protection class suitable for indoor use
- Temperature range from -40 to 80 °C
- Constructed from durable PA (Polyamide) material in natural color
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Electrical connections in industrial and commercial equipment
- Wiring assemblies requiring secure multi-point connections
- Use in control panels and electrical housings
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable polyamide construction extends product life reducing waste
- Supports efficient electrical connections minimizing energy loss
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
Wurth Multi-point Housing for flat plug-in sleeve 6.3 x 0.8 mm 5 PCS is available for immediate purchase, ideal for industrial and commercial electrical connection applications.
