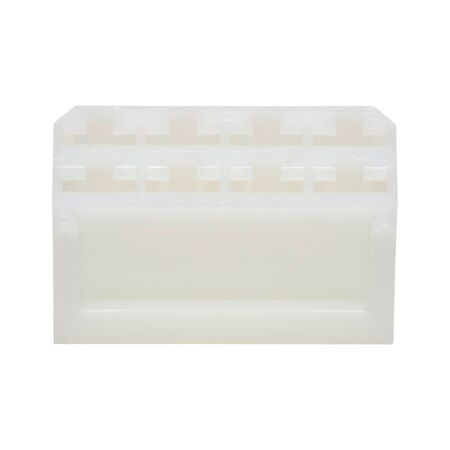

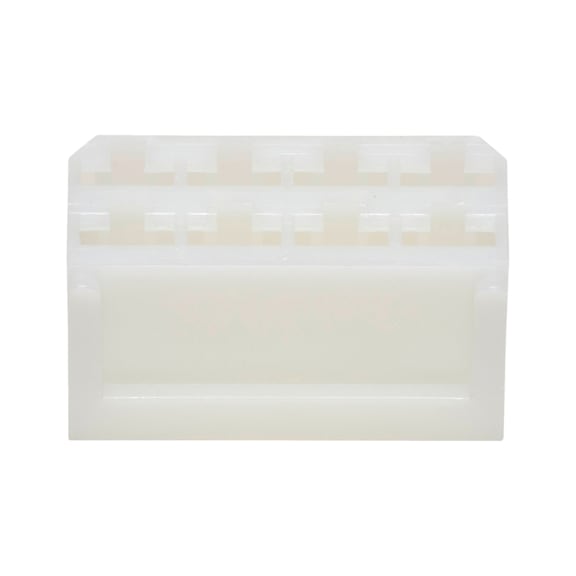

Multi-point Housing for Flat Plug-in Sleeve | 8 Electrical Poles | IP20 Rated | Natural Color | @Pack of 5 | by Wurth
The Multi-point housing for flat plug-in sleeve is designed for reliable electrical connections, featuring 8 electrical poles arranged in parallel and a contact gauge of 6.3 mm. Ideal for industrial and commercial applications, this durable PA - Polyamide housing supports wire cross sections from 0.5 to 6 mm², ensuring efficient and safe electrical assembly.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Multi-point Housing for Flat Plug-in Sleeve | 8 Electrical Poles | IP20 Rated | Natural Color | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 55510081
Alternatively Known As: Flat Plug-in Sleeve Housing, Multi-point Electrical Connector Housing, 6.3mm Flat Connector Housing
Technical Specifications
- Number of electrical poles: 8 PCS
- Arrangement of contacts: Every two parallel
- Contact gauge: 6.3 mm
- Wire cross section: 0.5-6 mm²
- IP protection class: IP20
- Max nominal voltage: 250 V AC/DC
- Max current: 25 A
- Temperature range: -40 to 80 °C
- Material: PA - Polyamide
- Colour: Natural
- Dimensions (H x L x W): 20mm x 100mm x 60mm
- Weight: 0.1 kg
Key Features
- 8 electrical poles with every two contacts arranged parallel
- Contact gauge of 6.3 mm
- Supports wire cross section from 0.5 to 6 mm²
- IP20 protection class
- Max nominal voltage of 250 V AC/DC
- Max current rating of 25 A
- Temperature range from -40 to 80 °C
- Made from durable PA - Polyamide material
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Electrical connections in industrial and commercial equipment
- Use in control panels and electrical housings
- Suitable for wiring and electrical assembly requiring flat plug-in sleeves
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable polyamide material reduces need for frequent replacements
- Supports efficient electrical connections reducing energy loss
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
Wurth Multi-point Housing for flat plug-in sleeve 6.3 x 0.8 mm 5 PCS is available for immediate purchase, ideal for electrical wiring and connection applications.
