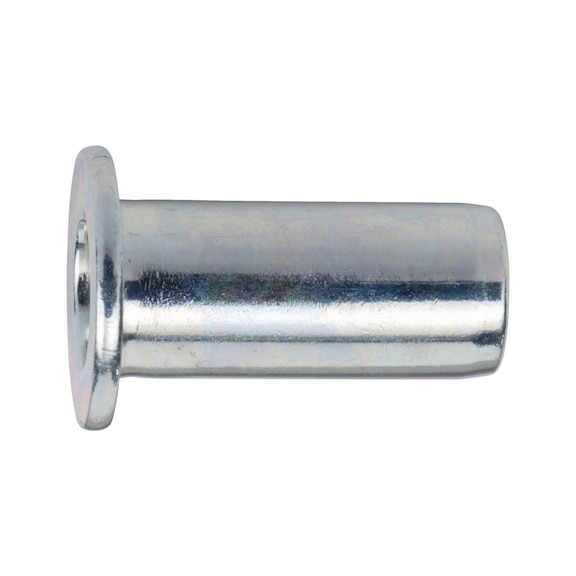

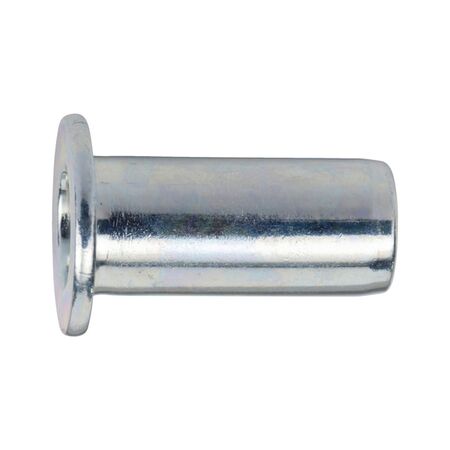

Multi-Purpose Rivet Nut with Flat Head | Zinc-Plated Steel | 10 PCS | by Wurth
The multi-purpose rivet nut with a flat head is designed for versatile fastening applications in industrial, automotive, and construction settings. Made from zinc-plated steel, it offers a robust clamping range and is compliant with EU directives for safety and environmental standards. Ideal for thin-walled and stronger components, this product ensures a clean and secure connection with professional installation recommended for optimal performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Multi-Purpose Rivet Nut with Flat Head | Zinc-Plated Steel | 10 PCS | by Wurth
Brand: Wurth
SKU: 9485605
Alternatively Known As: Rivet Nut Insert, Rivnut, Threaded Insert Nut, Blind Rivet Nut, Flat Head Rivet Nut
Technical Specifications
- Material: Steel
- Surface: Zinc plated transparent
- Thread type x nominal diameter (D): M5
- Head diameter (d1): 11.0 mm
- Outer diameter (d2): 7.0 mm
- Length (l1): 15 mm
- Head height (k1): 1.0 mm
- Min./max. grip range (s1): 0.5-6.0 mm
- Drill hole diameter: 7.1 mm
- Tensile fracture load: 6500 N
- Max. tightening torque: 6 Nm
- Head type: Dome head
- Dimensions (H x L x W): 15mm x 11mm x 11mm
- Weight: 0.05 kg
Key Features
- Innovative and patented rivet nuts with large clamping length range
- Zinc-plated steel construction
- Chrome(VI)-free and compliant with EU Directive on end-of-life vehicles
- Reduced storage costs due to small variety of types
- Clean, secure closing
- No mixing of different clamping ranges required
Professional Installation Requirements
- Installation requires use of conventional lever riveters; professional installation recommended for optimal performance and safety.
Applications
- Suitable for use as rivet and screw connection in thin-walled and stronger components
- Installation from one side, ideal for closed profiles
- Use with conventional lever riveters
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Chrome(VI)-free surface treatment reduces environmental and health hazards
- Complies with EU Directive on end-of-life vehicles promoting recyclability
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Multi-Purpose Flat Head Rivet Nut 10 PCS is available for immediate purchase, ideal for industrial, automotive, and construction fastening applications.
