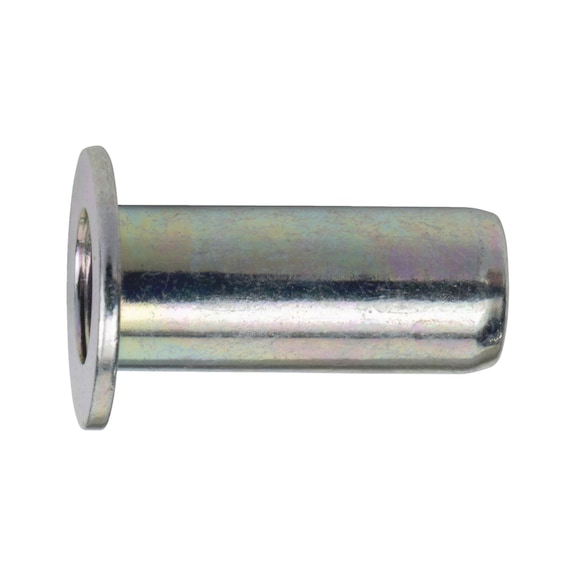

Multi-Purpose Rivet Nut with Flat Head | Zinc-Plated Steel | M4 Thread | @Pack of 10 | by Wurth
The multi-purpose rivet nut with flat head is designed for versatile fastening applications, featuring a durable zinc-plated steel construction and M4 thread type. Ideal for thin-walled and stronger components, it allows for installation from one side, making it perfect for closed profiles. With a tensile fracture load of 5200 N, this product ensures secure and reliable connections in industrial and construction settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Multi-Purpose Rivet Nut with Flat Head | Zinc-Plated Steel | M4 Thread | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 9485604
Alternatively Known As: Rivet Nut, Rivnut, Blind Nut, Threaded Insert, Nutsert
Technical Specifications
- Material: Steel
- Surface: Zinc plated
- Thread type x nominal diameter (D): M4
- Head diameter (d1): 10.0 mm
- Outer diameter (d2): 6.0 mm
- Length (l1): 14 mm
- Head height (k1): 0.8 mm
- Min./max. grip range (s1): 0.5-6.0 mm
- Drill hole diameter: 6.1 mm
- Tensile fracture load: 5200 N
- Max. tightening torque: 4.0 Nm
- Head type: Dome head
- Dimensions (H x L x W): 14mm x 14mm x 10mm
- Weight: 0.05 kg
Key Features
- Innovative and patented rivet nuts with large clamping length range
- Zinc-plated steel construction
- Chrome(VI)-free and compliant with EU Directive on end-of-life vehicles
- Reduced storage costs due to small variety of types
- No mixing of different clamping ranges required
- Installation from one side suitable for closed profiles
- Clean and secure closing
Professional Installation Requirements
- Installation should be performed using conventional lever riveters by trained personnel to ensure secure and proper fitting.
Applications
- Suitable for use in thin-walled and stronger components
- Installation from one side, ideal for closed profiles
- Use with conventional lever riveters for clean, secure closing
- Can be used as both rivet and screw connection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Chrome(VI)-free material reduces environmental and health hazards
- Complies with EU Directive on end-of-life vehicles promoting recyclability
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Multi-Purpose Rivet Nut with Flat Head 10 PCS is available for immediate purchase, ideal for industrial and construction fastening applications.
