Trade Discount 21%

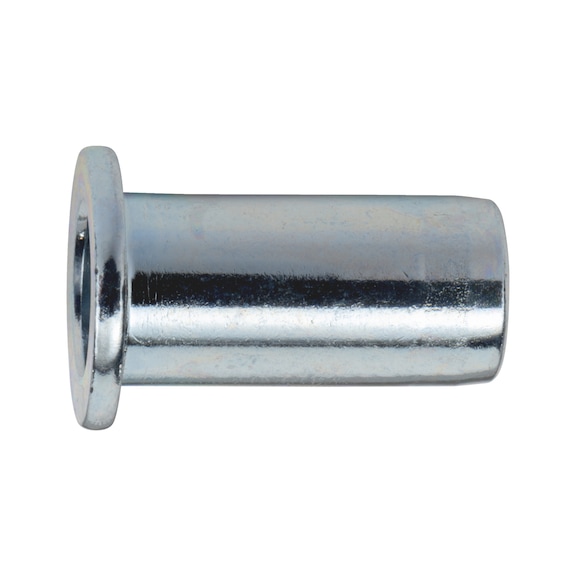

Multi-Purpose Rivet Nut with Flat Head | Zinc-Plated Steel | M6 Thread | @Pack of 10 | by Wurth
The multi-purpose rivet nut with a flat head is designed for versatile fastening in thin-walled and stronger components. Made from zinc-plated steel, it features an M6 thread and a large clamping length range, making it ideal for closed profiles. Perfect for industrial, automotive, and construction applications, this pack of 10 ensures you have the right fasteners for your projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Multi-Purpose Rivet Nut with Flat Head | Zinc-Plated Steel | M6 Thread | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 9485606
Alternatively Known As: Rivet nut insert, threaded rivet nut, blind rivet nut, rivnut, nutsert
Technical Specifications
- Material: Steel
- Surface: Zinc plated transparent
- Thread type x nominal diameter (D): M6
- Head diameter (d1): 13.0 mm
- Outer diameter (d2): 9.0 mm
- Length (l1): 17.5 mm
- Head height (k1): 1.5 mm
- Min./max. grip range (s1): 0.5-6.0 mm
- Drill hole diameter: 9.1 mm
- Tensile fracture load: 15500 N
- Max. tightening torque: 11.0 Nm
- Head type: Dome head
- Dimensions (H x L x W): 17.5mm x 13mm x 13mm
- Weight: 0.05 kg
Key Features
- Innovative and patented rivet nuts with large clamping length range
- Zinc-plated steel construction
- Chrome(VI)-free and compliant with EU Directive on end-of-life vehicles
- Reduced storage costs due to small variety of types
- No mixing of different clamping ranges required
- Installation from one side suitable for closed profiles
- Clean and secure closing
Professional Installation Requirements
- Installation requires use of conventional lever riveters; professional installation recommended for optimal fastening and safety.
Applications
- Suitable for use as rivet and screw connection in thin-walled and stronger components
- Installation from one side, ideal for closed profiles
- Use with conventional lever riveters for clean, secure closing
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Chrome(VI)-free surface treatment reduces environmental and health hazards
- Complies with EU Directive on end-of-life vehicles promoting recyclability
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Multi-Purpose Flat Head Rivet Nut 10 PCS is available for immediate purchase, ideal for industrial, automotive, and construction fastening applications.
