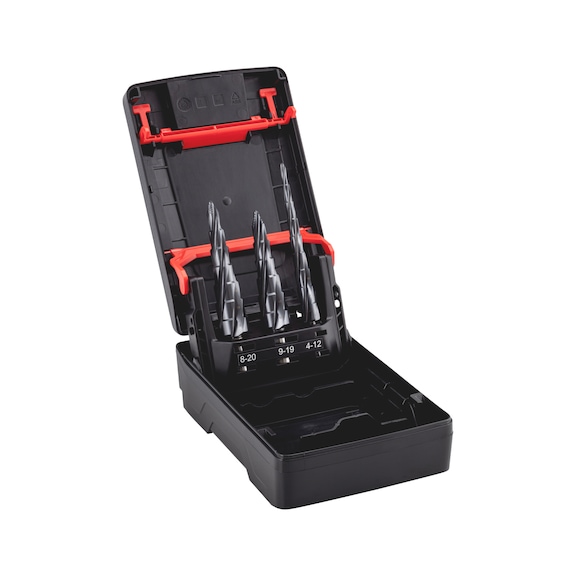

Multi-Purpose Stepped Drill Bit | AlCrN Coating | 3-Piece Set | 1050°C Temperature Resistance | by Wurth
The Multi-Purpose Stepped Drill Bit is designed for precision drilling in various materials, including sheet metal, steel, and plastics. With an AlCrN multi-layer coating for enhanced wear protection and a temperature resistance of up to 1050°C, this 3-piece set eliminates the need for predrilling and ensures smooth operation without distortion. Ideal for professionals in metalworking, construction, and manufacturing, it combines multiple bore diameters in one tool for efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Multi-Purpose Stepped Drill Bit | AlCrN Coating | 3-Piece Set | 1050°C Temperature Resistance | by Wurth
Brand: Wurth
SKU: 694459001
Alternatively Known As: Step drill bit, stepped drill, multi-step drill, AlCrN coated drill bit, SMART STEP drill bit
Technical Specifications
- Number of pieces in set: 3 PCS
- Shank style: 3-face shank
- Material strength capability: up to 1300 N/mm²
- Coating: AlCrN multi-layer wear protection
- Temperature resistance: up to 1050°C
- Coating hardness: 3000 HV
- Compatible with ORSY system cassette
- Dimensions (H x L x W): 40mm x 150mm x 150mm
- Weight: 0.3 kg
Key Features
- Eliminates predrilling with smaller twist drill bits
- Precise tap without the bit running out of centre
- Saves extra deburring as the next larger step diameter performs this function
- Combines numerous bore diameters in a single tool
- Very fast tap and faster drilling process due to four high-performance blades and SMART STEP technology
- Suitable for material thickness up to 10 mm
- Drilling with less strain and smooth running without getting caught
- No sheet metal distortion
- Simple re-drilling or enlarging of existing drill holes
- Reduced force exerted on the tool during drilling
- AlCrN multi-layer wear protection coating with high temperature resistance up to 1050°C
- High coating hardness of 3000 HV
- Multilayer construction for optimum chip removal and improved cutting properties
- 3-face shank for even feed and sufficient cooling/lubrication
- ORSY system compatible with compact and practical system cassette
Professional Installation Requirements
- No professional installation required; suitable for use with standard drills by trained operators.
Applications
- Sheet metal drilling
- Drilling thicker workpieces made of conventional steel up to 1300 N/mm² strength
- Cast iron, aluminium, brass, bronze drilling
- Plexiglas, plastic, and wood drilling
- Use in cordless drills, hand-held, pillar, and upright drills
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Reduces tool changes and machining times, lowering energy consumption
- Durable multi-layer coating extends tool life, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Multi-Purpose Stepped Drill Bit is available now for immediate purchase. Ideal for precision drilling in metalworking, construction, and manufacturing applications.
