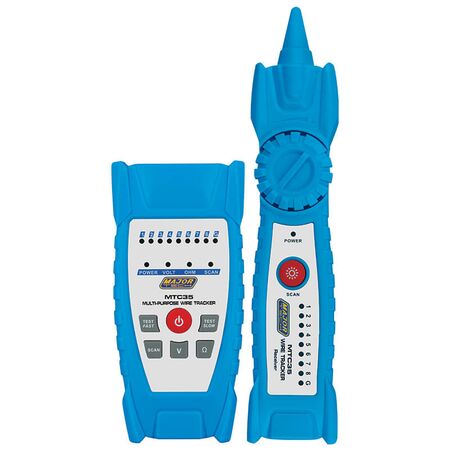

Multi-Purpose Wire Tracker LAN Test Tone Generator Majortech
Majortech wire tracker combines LAN cable test and tone generator functions with 1000m range for telecom and network diagnostics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functions: LAN Test, Tone and Probe Tester, Cable and Wire Tracing
- Signal Tracing Transmitter Range: up to 1000m
- Display: LED Status Indications
- Power: 3 x AAA batteries and 1 x 9V battery
- Weight: Transmitter 183g, Receiver 120g
- Dimensions (H x L x W): 52 mm x 220 mm x 83 mm
- Weight: 0.3 kg
Key Features
- Combines tone and probe generator with LAN tester
- Traces cables and wires with tone generator and probe
- Volume control indicator beeper with included earphones
- Verifies cable continuity, pair condition, line polarity, and voltage
- Built-in LAN cable mapping for quick fault diagnosis
- Reads pin configuration of various cable types including Cat 5, coaxial, RJ45/RJ11
- Tests voltage and short circuits on wires
Professional Installation Requirements
- Recommended to be used by trained professionals or technicians familiar with network and telephone cabling systems for accurate diagnostics and safety.
Applications
- Telephone and LAN cable installation and maintenance
- Network cabling system diagnostics
- HVAC industry cable tracing and testing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Helps reduce cable waste by accurately identifying cable faults and continuity issues
- Supports efficient maintenance reducing unnecessary replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to Majortech warranty policy for details.
Available Now
The Majortech Multi-Purpose Wire Tracker MTC35 is available now for immediate purchase. Ideal for telecommunications, LAN installation, and HVAC cable tracing applications.
