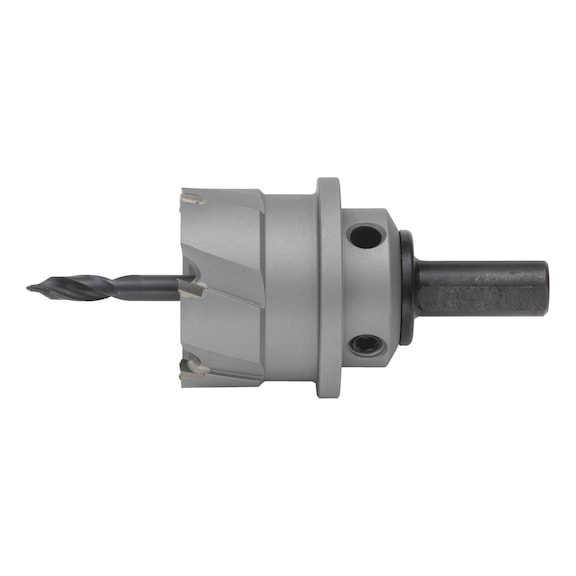

Multi-Range Hole Cutter 64mm | Carbide Tipped | CNC Cut Design | by Wurth
The Multi-Range Hole Cutter with a 64mm diameter is engineered for precise and clean drilling in various materials. Featuring carbide-tipped teeth and an optimised cutting geometry, it reduces cutting pressure and enhances efficiency. Ideal for industrial and construction applications, this hole saw is perfect for professionals seeking accuracy and durability in their drilling tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Multi-Range Hole Cutter 64mm | Carbide Tipped | CNC Cut Design | by Wurth
Brand: Wurth
SKU: 63012064
Alternatively Known As: Hole Saw, Multi-Range Hole Cutter, Carbide Tipped Saw, Drill Saw Bit
Technical Specifications
- Diameter: 64 mm
- Width across flats: 3/4 inch
- Cutting depth: 20 mm
- Drive type: Triangle
- Suitable for hand drill up to 6 mm material thickness and max. 30 mm saw diameter
- Suitable for drill press up to 20 mm material thickness and saw diameter over 30 mm
- Recommendation: MK-2 drive arbor for saws of 64 mm diameter
- Dimensions (H x L x W): 20mm x 64mm x 64mm
- Weight: 0.5 kg
Key Features
- Even CNC cut with cutting geometry aligned to reduce cutting pressure
- Offset, optimised centre drill (GS-protected system) for accurate centering
- Precise, optimally embedded cemented carbide teeth via automatic soldering
- Ejector spring automatically ejects drill core for materials up to 8 mm thick
- Solid basic body with offset chip grooves for efficient chip removal
- Separately tempered shank from 32 mm diameter for durability
Professional Installation Requirements
- Use by trained professionals or under supervision is recommended to ensure safety and optimal performance.
Applications
- Machining: Precise and clean drilling in various materials
- Industrial: Use with hand drills and drill presses for metalworking
- Construction: Suitable for drilling holes with low tolerances
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Reduced drilling time lowers energy consumption
- Optimised cutting geometry reduces material waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Multi-Range Saw 64mm diameter is available now for immediate purchase. Ideal for machining, metalworking, and construction applications requiring precise drilling.
