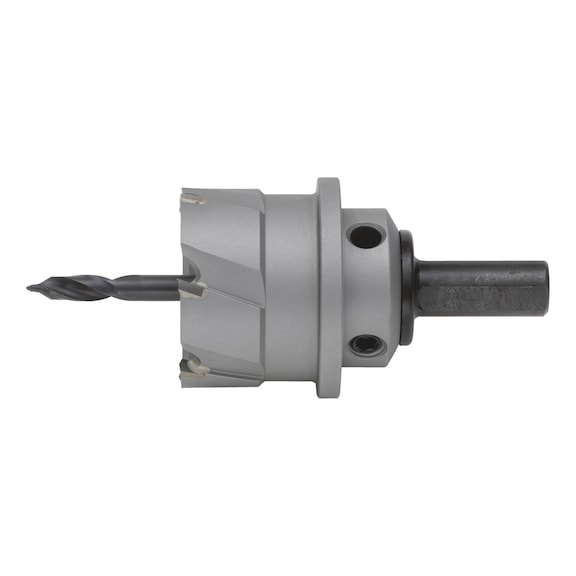

Multi-Range Hole Saw 25mm | Carbide Tipped | CNC Cut Design | by Wurth
The Multi-Range Hole Saw 25mm is engineered for precision drilling in metal and other materials, featuring a carbide-tipped design for durability and reduced drilling time. Ideal for both hand drills and drill presses, this tool ensures clean, accurate holes with minimal effort, making it perfect for professionals in machining and construction applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Multi-Range Hole Saw 25mm | Carbide Tipped | CNC Cut Design | by Wurth
Brand: Wurth
SKU: 63012025
Alternatively Known As: Multi-Range Hole Saw, Precision Drill Saw, Carbide Tipped Hole Saw, Wurth Drill Bit 25mm
Technical Specifications
- Diameter: 25 mm
- Width across flats: 3/4 inch
- Cutting depth: 20 mm
- Drive type: Triangle
- Suitable for hand drill use up to 6 mm material thickness and max 30 mm saw diameter
- Suitable for drill press use up to 20 mm material thickness and saw diameters greater than 30 mm
- Dimensions (H x L x W): 20mm x 25mm x 19mm
- Weight: 0.3 kg
Key Features
- Even CNC cut with cutting geometry aligned to reduce cutting pressure
- Offset, optimised centre drill (GS-protected system) for accurate centering without drifting
- Precise seating of cemented carbide teeth via fully automatic soldering process
- Ejector spring automatically ejects the drill core for materials up to 8 mm thick
- Solid basic body with offset chip grooves for efficient chip removal
- Separately tempered shank from 32 mm diameter for durability
- Reduced drilling force and over 50% reduction in drilling time
- Lower power consumption depending on hand-held drill used
Professional Installation Requirements
- Use by trained professionals or experienced operators is recommended to ensure proper handling and safety during drilling operations.
Applications
- Machining: Precise drilling in metal and other materials
- Industrial: Use with hand drills and drill presses for clean, accurate holes
- Construction: Suitable for drilling tasks requiring low tolerance and clean cuts
Standards & Compliance
- Complies with AS/NZS 3123 – Industrial Plugs and Socket-Outlets
Environmental Benefits
- Reduced drilling time and power consumption lowers energy use
- Durable carbide teeth extend tool life, reducing waste
Warranty Information
Wurth provides a standard warranty covering manufacturing defects. Please refer to Wurth's official warranty policy for details.
Available Now
The Wurth Multi-Range Saw 25mm diameter is available for immediate purchase, ideal for precise machining and drilling applications requiring clean, low tolerance holes.
