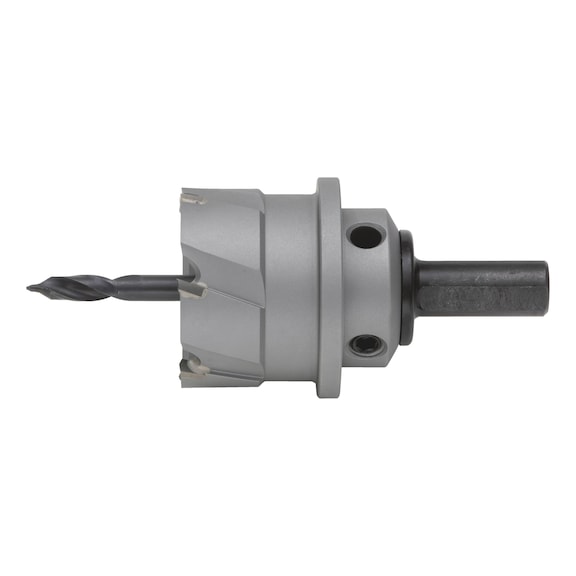

Multi-Range Hole Saw 38mm Carbide Tipped Ejector Spring Wurth
The Multi-Range Hole Saw 38mm is designed for precise drilling in metal and other materials, featuring carbide-tipped teeth for durability and an ejector spring for
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Diameter: 38 mm
- Width across flats: 3/4 inch
- Cutting depth: 20 mm
- Drive type: Triangle
- Compatible with hand drills and drill presses
- Ejector spring for automatic drill core removal (up to 8 mm material thickness)
- Dimensions (H x L x W): 20mm x 38mm x 38mm
- Weight: 0.3 kg
Key Features
- Even CNC cut with cutting geometry aligned to reduce cutting pressure
- Offset, optimised centre drill (GS-protected system) for accurate centering without drifting
- Precise seating of cemented carbide teeth via fully automatic soldering process
- Ejector spring automatically ejects drill core for materials up to 8 mm thick
- Solid basic body with offset chip grooves for efficient chip removal
- Separately tempered shank from 32 mm diameter for durability
- Recommended use with MK-2 drive arbor for saws 64 mm diameter and above
- Suitable for hand drills up to 6 mm material thickness and drill presses up to 20 mm thickness
Professional Installation Requirements
- Use by trained professionals or under supervision to ensure correct speeds and cooling/lubrication during operation.
Applications
- Machining: Precise drilling in metal and other materials
- Industrial: Use with hand drills and drill presses for clean, accurate holes
- Construction: Suitable for cutting through materials up to 20 mm thickness
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Reduced power consumption due to optimized cutting geometry
- Lower drilling force reduces energy use and tool wear
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
The Wurth Multi-Range Saw 38mm diameter is available now for immediate purchase. Ideal for precise machining and construction drilling applications.
