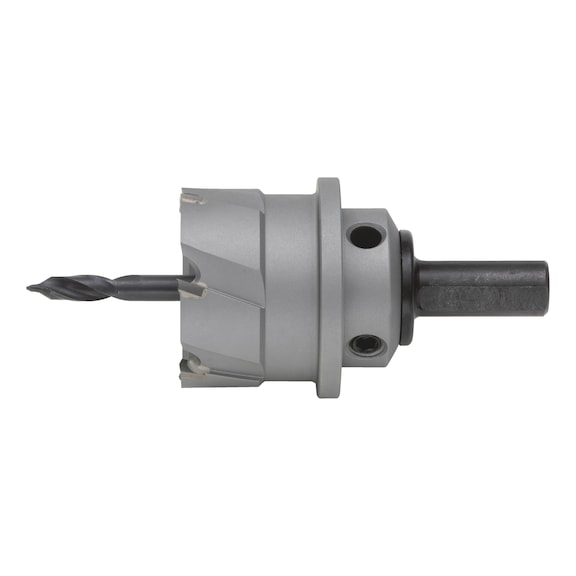

Multi-Range Hole Saw 44mm | Carbide Tipped | CNC Cut Design | Ejector Spring | by Wurth
The Multi-Range Hole Saw 44mm is engineered for precision drilling in metal and other materials, featuring a carbide-tipped design and CNC cut geometry to reduce cutting pressure. Ideal for industrial and construction applications, this saw ensures clean, accurate holes with an ejector spring for easy core removal, making it a must-have for professionals seeking efficiency and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Multi-Range Hole Saw 44mm | Carbide Tipped | CNC Cut Design | Ejector Spring | by Wurth
Brand: Wurth
SKU: 63012044
Alternatively Known As: Multi-Range Hole Saw, Precision Drill Saw, Carbide Tipped Hole Saw, Wurth Drill Bit
Technical Specifications
- Diameter: 44 mm
- Width across flats: 3/4 inch
- Cutting depth: 20 mm
- Drive type: Triangle
- CNC cut for reduced cutting pressure
- GS-protected offset centre drill
- Fully automatic soldering of carbide teeth
- Ejector spring for drill core removal
- Dimensions (H x L x W): 20mm x 44mm x 44mm
- Weight: 0.3 kg
Key Features
- Even CNC cut with cutting geometry aligned to reduce cutting pressure
- Offset, optimised centre drill (GS-protected system) for accurate centering without drifting
- Precise seating of cemented carbide teeth via fully automatic soldering process
- Ejector spring automatically ejects drill core for materials up to 8 mm thick
- Solid basic body with offset chip grooves for efficient chip removal
- Separately tempered shank from 32 mm diameter for durability
- Recommended use with MK-2 drive arbor for saws 64 mm diameter and above
- Suitable for hand drills up to 6 mm material thickness and drill presses up to 20 mm thickness
Professional Installation Requirements
- Use by trained professionals or under supervision is recommended to ensure correct operation and safety. Follow operating instructions for cooling and lubrication.
Applications
- Machining: Precise drilling in metal and other materials
- Industrial: Use with hand drills and drill presses for clean, accurate holes
- Construction: Suitable for cutting through materials up to 20 mm thickness
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Reduced drilling time lowers energy consumption
- Efficient cutting reduces material waste
Warranty Information
Wurth standard product warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Multi-Range Saw 44mm diameter is available now for immediate purchase. Ideal for machining, industrial, and construction applications requiring precise and efficient drilling.
