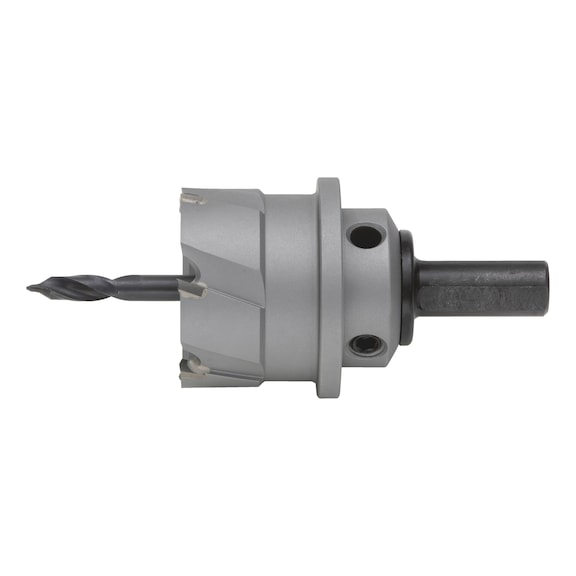

Multi-Range Hole Saw 51mm | Carbide Tipped | Ejector Spring | by Wurth
The Multi-Range Hole Saw is designed for precision drilling with a 51mm diameter and carbide tipped teeth for durability. Ideal for both hand drill and drill press applications, it features an ejector spring for automatic core ejection, making it perfect for clean and accurate holes in various materials. This tool is built for professionals seeking efficiency and reliability in their drilling tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Multi-Range Hole Saw 51mm | Carbide Tipped | Ejector Spring | by Wurth
Brand: Wurth
SKU: 63012051
Alternatively Known As: Multi-Range Hole Saw, Precision Drill Saw, Carbide Tipped Hole Saw, Offset Centre Drill Saw
Technical Specifications
- Diameter: 51 mm
- Width across flats: 3/4 inch
- Cutting depth: 20 mm
- Drive type: Triangle
- Suitable for hand drill and drill press use
- Ejector spring for automatic drill core ejection up to 8 mm material thickness
- Dimensions (H x L x W): 51mm x 51mm x 19mm
- Weight: 0.3 kg
Key Features
- Even CNC cut with cutting geometry aligned to reduce cutting pressure
- Offset, optimised centre drill (GS-protected system) for accurate centering without drifting
- Precise, optimally embedded cemented carbide teeth via fully automatic soldering process
- Ejector spring automatically ejects the drilled section for materials up to 8 mm thick
- Solid basic body with offset chip grooves for efficient chip removal
- Separately tempered shank from 32 mm diameter for durability
- Recommended use of MK-2 drive arbor for saws of 64 mm diameter
Professional Installation Requirements
- Use by trained personnel recommended. Follow operating instructions and safety guidelines for optimal performance and safety.
Applications
- Hand drill use for material thickness up to 6 mm and saw diameter up to 30 mm
- Drill press use for material thickness up to 20 mm and saw diameter greater than 30 mm
- Suitable for machining precise and clean drilling patterns with low tolerances
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Reduced drilling time and power consumption lowers energy use
- Durable carbide teeth extend tool life, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Multi-Range Saw 51mm diameter is available now for immediate purchase. Ideal for precise machining and drilling applications requiring clean and accurate holes.
