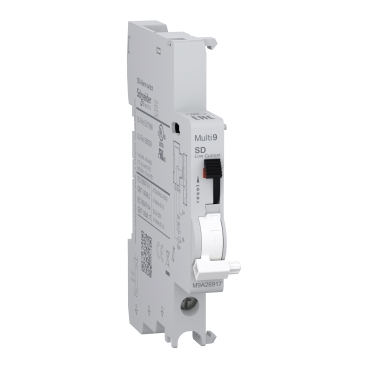

Multi9 M9A SD Bottom Wiring Auxiliary Contact | 2-100mA Current Rating | DIN Rail Mount | by Clipsal
The Multi9 M9A SD Bottom Wiring Auxiliary Contact is designed for reliable signaling in industrial and commercial electrical panels. With a current rating of 2-100mA and a compact DIN rail mount design, it integrates seamlessly with Multi9 M9A SD circuit breakers. Ideal for automation and control systems, this auxiliary contact ensures efficient monitoring and control, reducing unnecessary power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Multi9 M9A SD Bottom Wiring Auxiliary Contact | 2-100mA Current Rating | DIN Rail Mount | by Clipsal
Brand: Clipsal
SKU: SCHM9A26917
Alternatively Known As: Multi9 auxiliary contact, M9A SD auxiliary, Clipsal SCHM9A26917, Multi9 bottom wiring aux, Schneider auxiliary contact
Technical Specifications
- Type: Auxiliary contact for Multi9 M9A SD
- Wiring: Bottom wiring
- Current rating: 2-100mA
- Mounting: DIN rail
- Compatible with: Multi9 M9A SD circuit breakers
- Contact configuration: 1NO+1NC
- Dimensions (H x L x W): 85mm x 70mm x 18mm
- Weight: 0.12 kg
Key Features
- Auxiliary contact for Multi9 M9A SD series
- Bottom wiring configuration
- Current rating: 2-100mA
- Reliable auxiliary signaling for circuit breakers
- Compact design for easy integration
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with Australian standards and local regulations.
Applications
- Industrial electrical panels
- Commercial switchboards
- Auxiliary circuit monitoring
- Automation and control systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports efficient monitoring and control, reducing unnecessary power consumption.
- Durable design minimizes replacement frequency and electronic waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Multi9 M9A SD Bottom Wiring 2-100mA Auxiliary (SCHM9A26917) is available for immediate purchase. Ideal for industrial and commercial electrical panels requiring reliable auxiliary signaling.
